(27.120.AF) - FINAL DRIVE ASSEMBLY, STANDARD

Запчасти Case 721F (27.120.AF) - FINAL DRIVE ASSEMBLY, STANDARD (27) - REAR AXLE SYSTEM

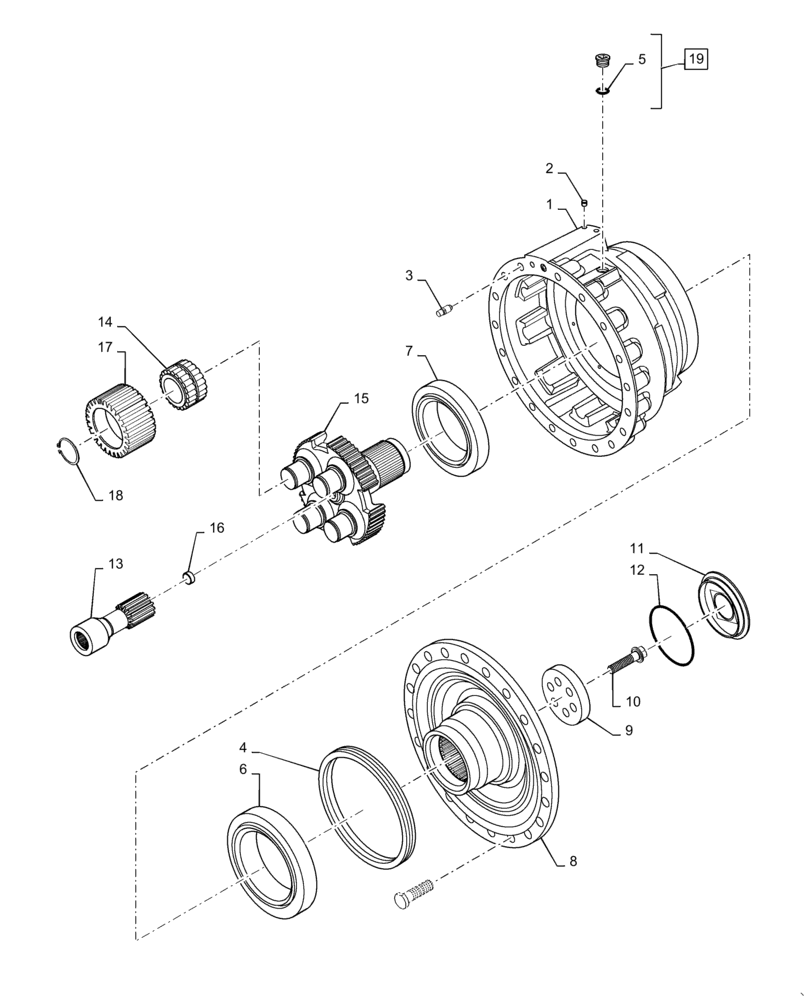

Схема запчастей Case 721F - (27.120.AF) - FINAL DRIVE ASSEMBLY, STANDARD (27) - REAR AXLE SYSTEM
1
19
18
12
15
7
3
17
16
6
9
4
5
10
13
11
14
8
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84352296

HOUSING

Final Drive

1шт.

2

8603673

PLUG

Housing

2шт.

3

76088742

VALVE

Vent

1шт.

4

84150634

SEAL

Ring

1шт.

5

8603208

O-RING,2mm Thk x 21mm ID

1шт.

6

8603563

TAPERED BEARING

Cup and Cone

1шт.

7

87743209

TAPERED BEARING

Cup and Cone

1шт.

8

87743210

SHAFT

Output

1шт.

9

87743211

COVER

Shaft

1шт.

10

87743212

LOCK BOLT

Shaft Cover Mounting

4шт.

11

8603567

COVER

Housing

1шт.

12

8603527

O-RING

Cover to Housing

1шт.

13

87743214

SHAFT

Sun Gear

1шт.

14

87358699

GEAR

Planet

4шт.

15

84162393

CARRIER,Planetary Gear

1шт.

16

8603571

PLUG

Planetary Carrier

1шт.

17

84219769

BEARING, ROLLER, CYL

Planetary Gear

4шт.

18

8603574

RETAINER

Ring

4шт.

19

84329418

HEX SOCKET PLUG

Final Drive Housing, Incl 5

1шт.
