(27.106.AC[01]) - DIFFERENTIAL ASSEMBLY, STANDARD

Запчасти Case 721F (27.106.AC[01]) - DIFFERENTIAL ASSEMBLY, STANDARD (27) - REAR AXLE SYSTEM

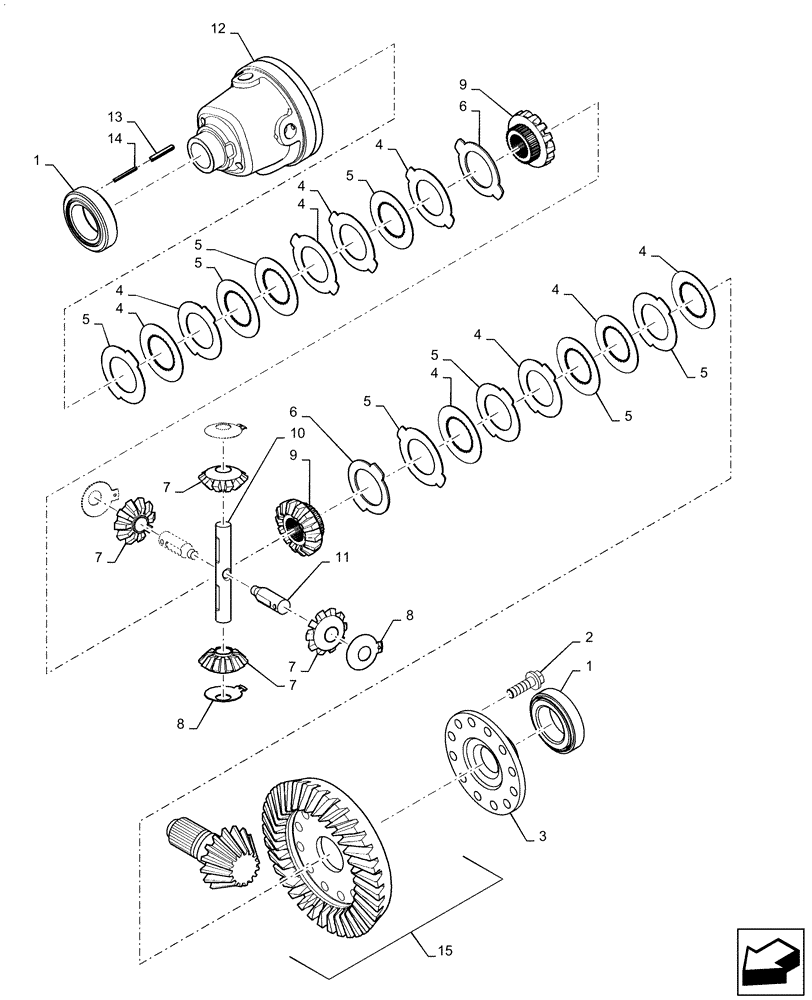

Схема запчастей Case 721F - (27.106.AC[01]) - DIFFERENTIAL ASSEMBLY, STANDARD (27) - REAR AXLE SYSTEM
7
5
10
4
3
13
1
4
4
5
14
5
5
11
4
4
15
6
4
4
5
2
7
4
9
1
5
5
5
4
6
7
12
8
7
8
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

8603222

ROLLER BEARING,65mm ID x 140mm OD x 36mm W

2шт.

2

184716A1

SCREW

Locking

12шт.

3

87742961

COVER

Housing

1шт.

4

87742942

CLUTCH DISC

Inner

8шт.

5

87742939

CLUTCH PLATE

Outer, 1.8 mm

1шт.

5

87742940

CLUTCH PLATE

Outer, 1.9 mm

1шт.

5

87742941

DISC,Axle, Friction

Outer, 2.0mm

1шт.

6

87742943

THRUST WASHER

Thrust

2шт.

7

87742944

BEVEL GEAR

Axle

4шт.

8

87742946

THRUST WASHER

Bevel Gear

4шт.

9

87742945

BEVEL GEAR

Differential

2шт.

10

87742956

AXLE DIFFERENTIAL

Full Pin

1шт.

11

87742957

AXLE DIFFERENTIAL

Half Pin

2шт.

12

87742938

DIFFERENTIAL

Housing

1шт.

13

87742960

PIN

Slot, 5 x 80 mm

2шт.

14

84024216

LOCK PIN,5mm OD x 50mm L, Slotted

2шт.

15

84352077

BEVEL GEAR

Gear and Pinion Set

1шт.
