(25.108.AC) - FINAL DRIVE ASSEMBLY, STANDARD

Запчасти Case 721F (25.108.AC) - FINAL DRIVE ASSEMBLY, STANDARD (25) - FRONT AXLE SYSTEM

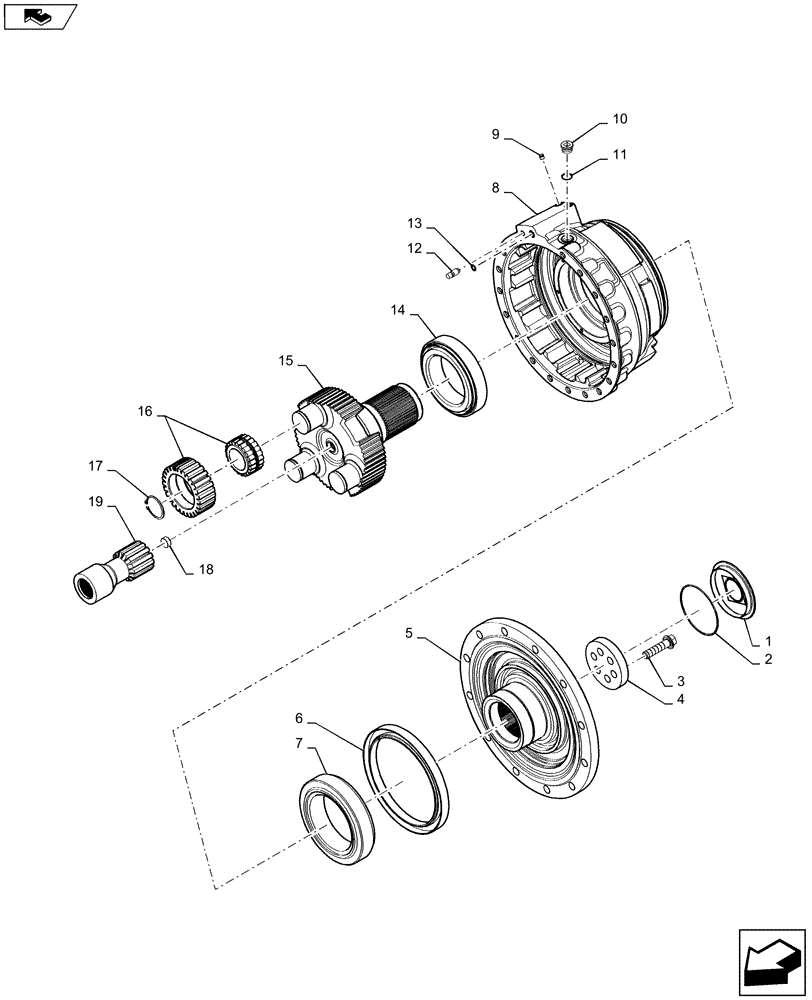

Схема запчастей Case 721F - (25.108.AC) - FINAL DRIVE ASSEMBLY, STANDARD (25) - FRONT AXLE SYSTEM
9
1
10
13
18
16
7
8
14
19
17
2
4
3
11
6
15
12
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

8603567

COVER

Wheel Flange Nut

1шт.

2

8603527

O-RING

Flange Nut

1шт.

3

84329412

LOCK SCREW

Bearing Cover Mounting

6шт.

4

84329411

BEARING COVER

Final Drive

1шт.

5

47767333

DISK

Output

1шт.

6

84150634

SEAL

Ring, Wheel End

1шт.

7

384969A1

TAPERED BEARING

Cup and Cone

1шт.

8

84329406

HOUSING

Final Drive

1шт.

9

8603673

PLUG

Final Drive Housing

1шт.

10

84329418

HEX SOCKET PLUG

Upper Housing

1шт.

11

8603208

O-RING,2mm Thk x 21mm ID

1шт.

12

76088742

VALVE

Vent, Housing

1шт.

13

8603559

O-RING,2.5mm Thk x 12.5mm ID, 75 Duro

Wheel End Bolt

1шт.

14

47573327

BEARING ASSY

Planetary Carrier

1шт.

15

84353895

PLANET CARRIER

Assembly

1шт.

16

84329416

PLANETARY GEAR

Teeth and Bearing

3шт.

17

87758638

RING

Retaining

3шт.

18

47535286

BOLT,Stop, Hex

Stop, Bolt

1шт.

19

84329413

GEAR SHAFT

Sun, Planetary Carrier

1шт.
