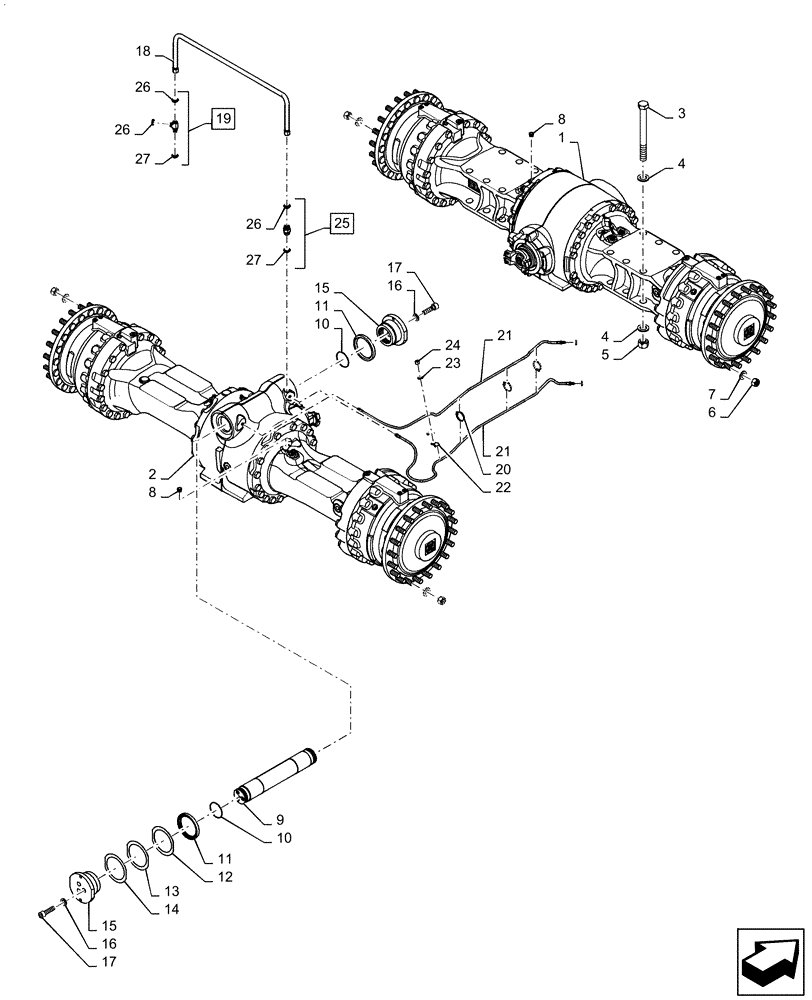

Запчасти Case 721F (25.102.AS) - HEAVY DUTY FRONT AND REAR AXLE INSTALLATION (25) - FRONT AXLE SYSTEM

1

84234384

4WD AXLE ASSY

Front

1шт.

1

84234384R

REMAN-FRONT AXLE w/D

Reman

1шт.

1

84234384C

CORE-FRT AXLE W/DIFF

Return Number

1шт.

2

84234387

4WD AXLE ASSY

Rear

1шт.

2

84234387R

REMAN-REAR AXLE

1шт.

2

84234387C

CORE-REAR AXLE

1шт.

3

827-24160

BOLT,Hex, M24 x 3 x 160mm, Cl 10.9

8шт.

4

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

16шт.

5

829-1424

NUT,M24, Cl 10

8шт.

6

84227695

NUT

M22 X 1.5

48шт.

7

896-11022

WASHER,24mm ID x 44mm OD x 4mm Thk

48шт.

8

47566244

BREATHER

Valve

2шт.

9

84215422

PIN,80.5mm OD x 503mm L

Rear Axle Piviot

1шт.

10

238-5235

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

2шт.

11

84477329

SEAL,109.4mm ID x 137.2mm OD x 14.5mm Thk

Grease

2шт.

12

84215454

SHIM,122.5mm ID x 157mm OD x 1.5mm Thk

1.50 mm

1шт.

13

84215453

SHIM,122.5mm ID x 157mm OD x 1mm Thk

1.00 mm

1шт.

14

84215452

SHIM,122.5mm ID x 157mm OD x 0.5mm Thk

.50 mm

1шт.

15

84215421

CAP

End

2шт.

16

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

6шт.

17

863-20070

HEX SOC SCREW,M20 x 70mm, 12.9

6шт.

18

84296901

HYD TUBE

Rear Axle

1шт.

19

700-412

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 26, 27

1шт.

20

L11541

CABLE TIE,203.2mm L, Nylon

Strap

3шт.

21

84258672

HOSE ASSY.,4.83mm ID x 2174mm L

Grease Axle Bushing

2шт.

22

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

2шт.

23

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

24

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

25

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 26, 27

1шт.

26

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3шт.

27

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

28

47898476

SHIM

1шт.

29

48079456

SHIM

1шт.
