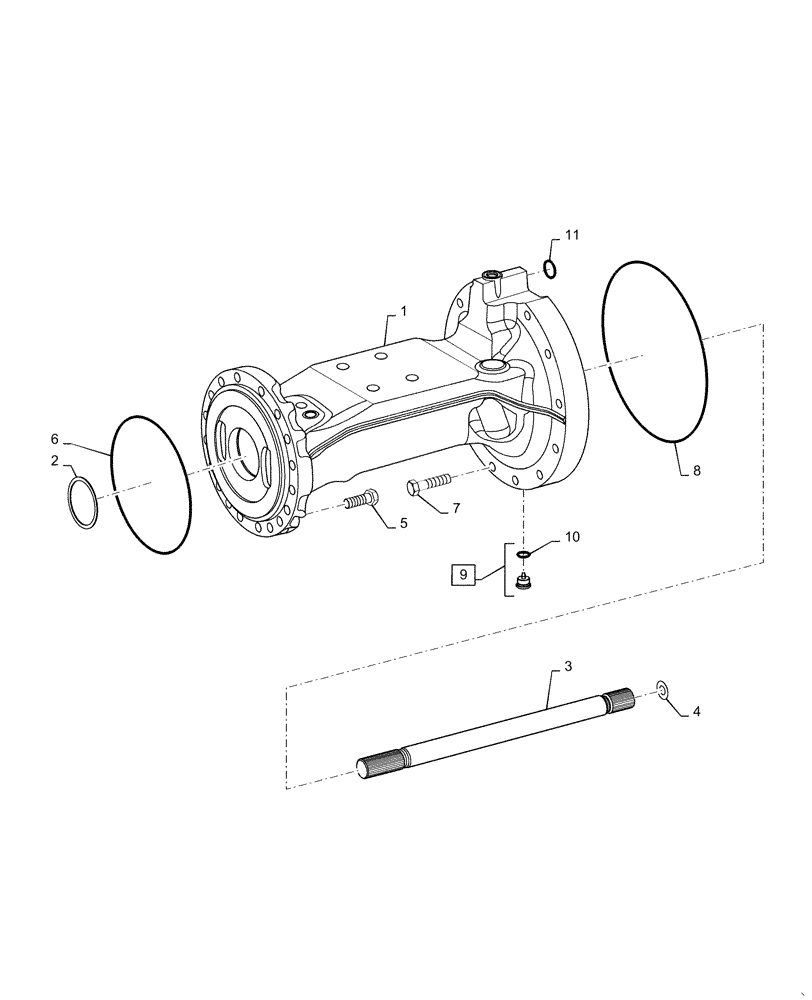

Запчасти Case 721F (25.100.AD[02]) - FRONT AXLE HOUSING, STANDARD AND HEAVY DUTY (25) - FRONT AXLE SYSTEM

1

84353887

AXLE HOUSING

Front

1шт.

2

84330538

SHIM,0.8mm Thk

0.8 mm

1шт.

2

84330539

SHIM

0.9 mm

1шт.

2

84330540

SHIM

1.0 mm

1шт.

2

84330541

SHIM

1.1 mm

1шт.

2

84330542

SHIM

1.2 mm

1шт.

2

84476078

SHIM

0.6 mm

1шт.

2

84476080

SHIM

0.65 mm

1шт.

3

84353888

SHAFT

Stub

1шт.

4

8605309

SHIM,0.60mm Thk

1шт.

4

8605310

SHIM,1.00mm Thk

1шт.

4

8605311

SHIM,1.60mm Thk

1шт.

4

8605312

SHIM,2.00mm Thk

1шт.

4

8605313

SHIM,2.50mm Thk

1шт.

5

84330544

HEX SOC SCREW

Mounting

18шт.

6

87521445

O-RING,3mm Thk x 342mm ID

1шт.

7

8603800

BOLT

Mounting

19шт.

8

8603674

O-RING,2.5mm Thk x 362mm ID, 70 Duro

1шт.

9

84352083

PLUG

Housing, Incl 10

1шт.

10

8603208

O-RING,2mm Thk x 21mm ID

1шт.

11

87746031

O-RING

Main Housing

1шт.
