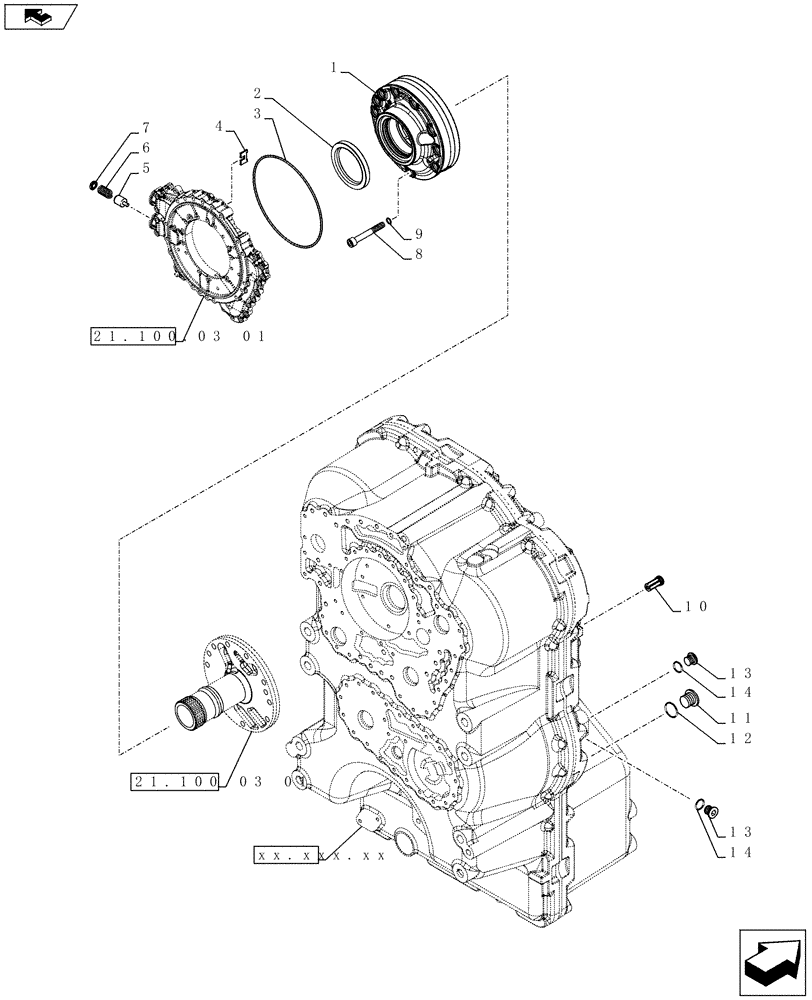

Запчасти Case 721F (21.100.03[01]) - TRANSMISSION 4-SPEED, REGULATOR VALVE AND OIL PUMP (21) - TRANSMISSION

1

87446110

PUMP, HYDRAULIC

Oil Pressure, Incl. Ref. 2

1шт.

2

8603391

SEAL

1шт.

3

87712668

O-RING,184.5" ID x 3" Width

1шт.

4

8603380

SPRING SEAT

1шт.

5

8603382

PISTON

1шт.

6

8603383

SPRING

Compression

1шт.

7

8603381

PLATE

Pressure

1шт.

8

8603384

SCREW

Incl. Ref. 9

10шт.

9

8603385

O-RING

10шт.

10

8603378

VALVE

1шт.

11

8603400

PLUG

Incl. Ref. 12

1шт.

12

8603401

O-RING,2mm Thk x 23mm ID

1шт.

13

8603357

PLUG

Incl. Ref. 14

2шт.

14

8603358

O-RING,2mm Thk x 13mm ID

2шт.
