(21.100.02[02]) - TRANSMISSION 5-SPEED, SPEED SENSOR, TEMPERATURE SENSOR, AND PUMP COVER

Запчасти Case 721F (21.100.02[02]) - TRANSMISSION 5-SPEED, SPEED SENSOR, TEMPERATURE SENSOR, AND PUMP COVER (21) - TRANSMISSION

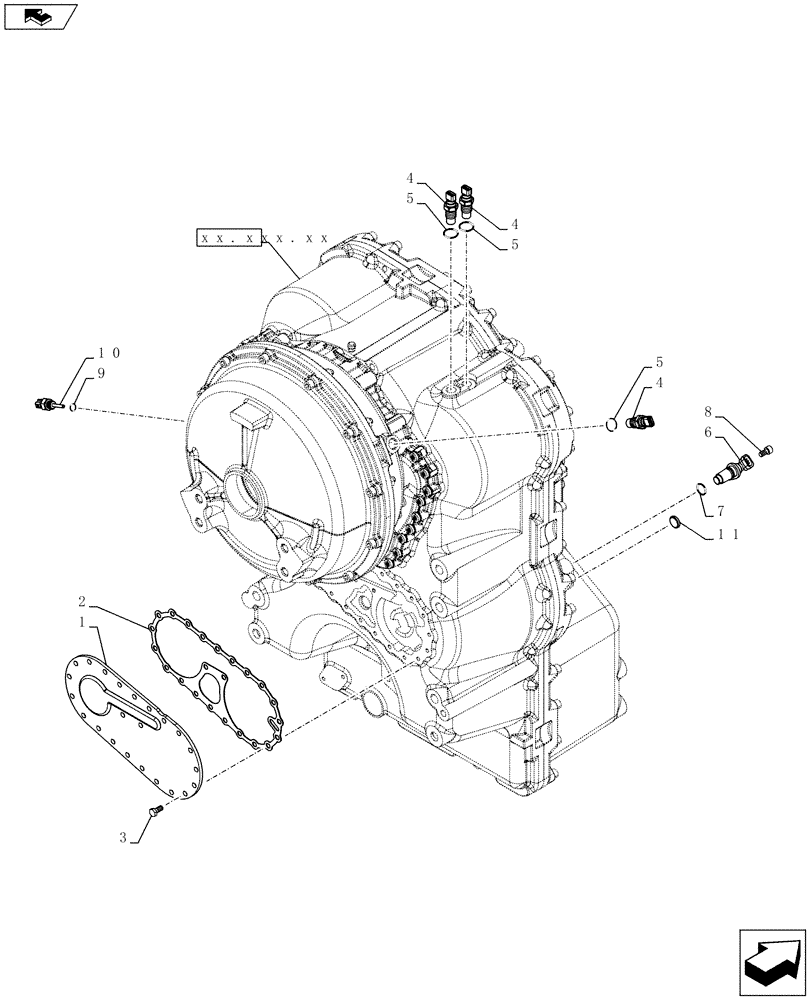

Схема запчастей Case 721F - (21.100.02[02]) - TRANSMISSION 5-SPEED, SPEED SENSOR, TEMPERATURE SENSOR, AND PUMP COVER (21) - TRANSMISSION
4
7
9
1
6
11
5
4
8
2
10
5
4
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

84234371R

REMAN-TRANSMISSION

721F Tier 4 w/5 Speed Transmission

1шт.

84234371C

CORE-TRANSMISSION

Return Number

1шт.

1

8603393

COVER

Steering Pump

1шт.

2

8603395

GASKET

1шт.

3

8603396

BOLT,Hex, M8 x 18mm

M8 x 18

23шт.

4

8603397

SENSOR

Inductive Coupling, Incl 5

3шт.

5

87453989

O-RING

3шт.

6

8900134428

SENSOR

Speed, Output, Incl 7

1шт.

7

8603629

O-RING

1шт.

8

8603399

SCREW,M8 x 16mm

1шт.

9

87712669

SENSOR

Incl 10

1шт.

10

8603402

O-RING

1шт.

11

8603667

CAP

1шт.
