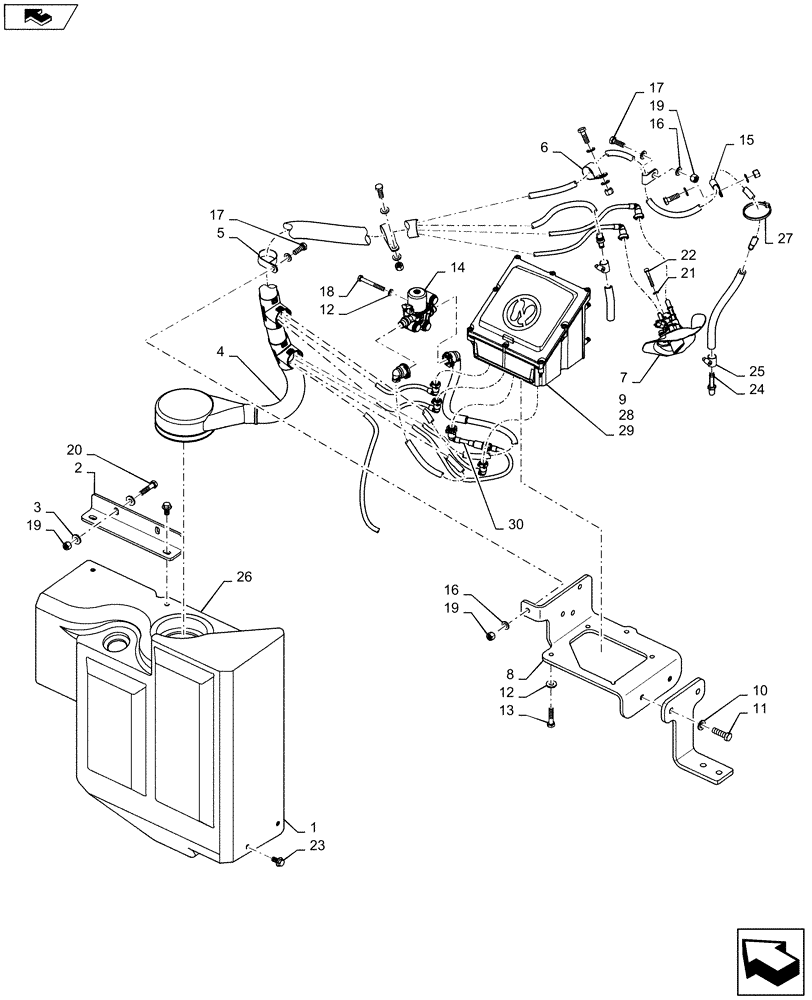

Запчасти Case 721F (10.500.01[01]) - TANK INSTALLATION - DEF (10) - ENGINE

1

84483056

TANK

Urea

1шт.

2

84299672

BRACKET

Tank hold

1шт.

3

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

4шт.

4

84292040

HOSE ASSY.

Bundle

1шт.

5

515-23412

CLAMP,1 5/8", Insul, 3/8" Bolt

2шт.

6

515-24317

CLAMP,1 1/4", Insul, 7/16" Bolt

1шт.

7

84247021

MODULE,Dosing Injector

Denox2 Urea Dosing

1шт.

8

84361377

BRACKET

Supply Module

1шт.

9

84246892

MODULE

Box

1шт.

9

84246892R

REMAN-MODULE

1шт.

9

84246892C

CORE-MODULE

Return Number

1шт.

10

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

11

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

2шт.

12

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

7шт.

13

43234

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

14

84151635

HEATER VALVE

Heater

1шт.

15

86632595

CLAMP,12.7mm, Coat, 13.5mm Bolt Hole, P Type

2шт.

16

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

10шт.

17

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

5шт.

18

84042348

BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

3шт.

19

832-10410

NUT,M10 x 1.5, Cl 8

M10 Class 8

7шт.

20

8900127036

BOLT,Hex, M10 x 45mm, Cl 8.8

2шт.

21

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

CST/ZND

3шт.

22

84233542

HEX SOC SCREW

M6x40 Class 12.9

3шт.

23

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

4шт.

24

87017579

FITTING,3/8" Hose X 1/4" NPTF Beaded

1шт.

25

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

2шт.

26

84284896

DECAL,DEF TANK identification label

DEF Tank

1шт.

27

435437A1

CABLE TIE,3/16" x 7 1/4"

Strap

3шт.

28

84254852

FILTER

Filter Assy, For Cap see 31

1шт.

29

84247272

FILTER,In-Line

Urea In-Line

1шт.

30

84263625

HOSE ASSY.

1шт.

31

47401714

FILTER HEAD

1шт.
