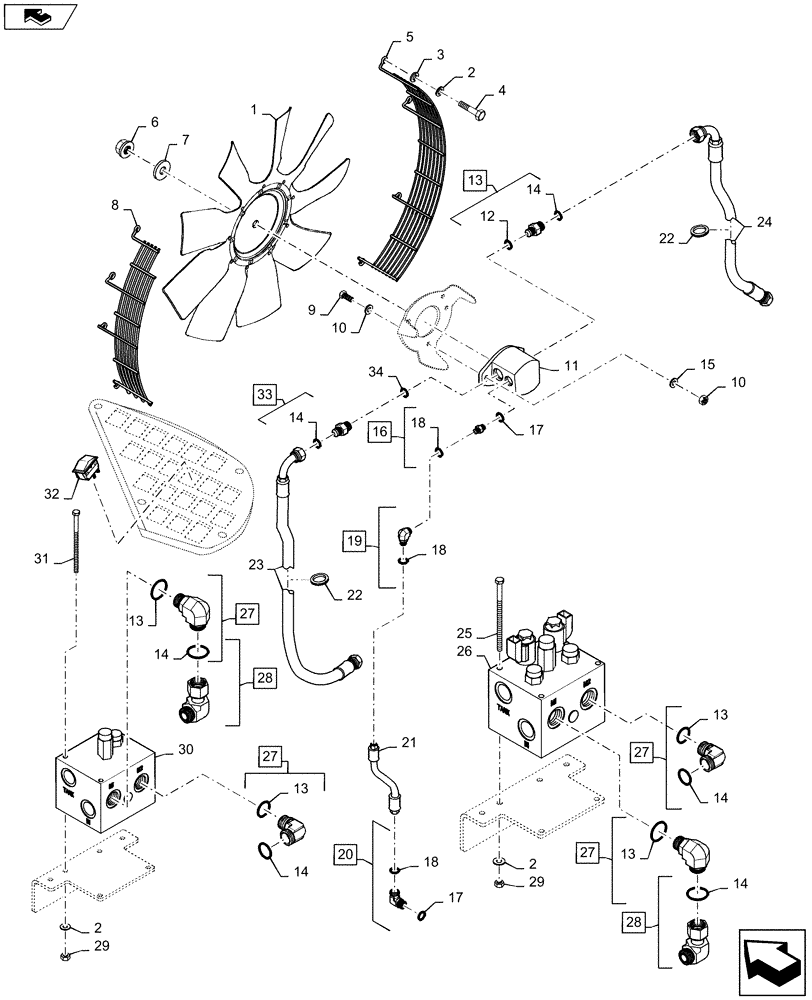

Запчасти Case 721F (10.414.03) - FAN DRIVE (10) - ENGINE

1

87700025

FAN,8 Blades, 711.2mm OD

With Hub and Blades

1шт.

2

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

14шт.

3

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

8шт.

4

43235

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

8шт.

5

84246825

GUARD

Fan, RH

1шт.

6

232-2448

NUT,1/2"-20, GC

1шт.

7

86624188

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

1шт.

8

84246825

GUARD

Fan, LH

1шт.

9

337563

BOLT,M12 x 1.75 x 47.68mm, Cl 10.9

2шт.

10

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

4шт.

11

8500105

HYDRAULIC MOTOR,GEAR, 23 CC

Fan, 23cc/Rev, Incl 33

1шт.

11

8500105R

REMAN-HYD MOTOR

721F TIER 4

1шт.

11

8500105C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

12

86579682

HYD CONNECTOR,1-3/16" - 12 ORFS x M27 x 2 ORB

Incl 13 - 14

1шт.

13

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

5шт.

14

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

6шт.

15

412126

NUT,M12 x 1.75

2шт.

16

86579671

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORB

Incl 17 - 18

1шт.

17

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.

18

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3шт.

19

84989392

ELBOW,90 Degree, 11/16"-16 ORFS x 11/16"-16 Fem Sw

Incl 18

1шт.

20

86579686

90 ELBOW,11/16"-16 ORFS x M14 x 1.5 ORB

Incl 17 - 18

4шт.

21

8500183

FLEXIBLE HOSE

Case Drain

1шт.

22

8500186

GROMMET

2шт.

23

87559564

HOSE

Fan, Forward

1шт.

24

84405511

HOSE ASSY.

Fan, Reverse

1шт.

25

300807

BOLT,Hex, M8 x 140, 8.8

3шт.

26

8500565

HYDRAULIC VALVE

Fan Speed and Reverse

1шт.

27

86579697

ELBOW,90 Degree, 1-3/16"-12 ORFS x M27 x 2.0 ORB

Incl 13 - 14

2шт.

28

84989412

ELBOW,90 Degree, 1-3/16-12 ORFS x 1-3/16"-12 Fem Sw

Incl 14

2шт.

29

86528579

NUT,M8 x 1.25

6шт.

30

8500562

HYDRAULIC VALVE

Fan, Relief

1шт.

31

86512165

BOLT,Hex, M8 x 100mm, Cl 10.9

3шт.

32

87350049

SWITCH

Rocker Fan Ctl

1шт.

33

86579681

HYD CONNECTOR,1-3/16"-12 ORFS x M22 x 1.5 ORB

Incl 14, 35

1шт.

34

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

35

86991683

SEAL KIT

Fan Motor, Not Illustrated

1шт.
