Запчасти Case 721F (10.414.02) - COVERS - DRIVE BELT (WITHOUT AIR CONDITIONING) (10) - ENGINE

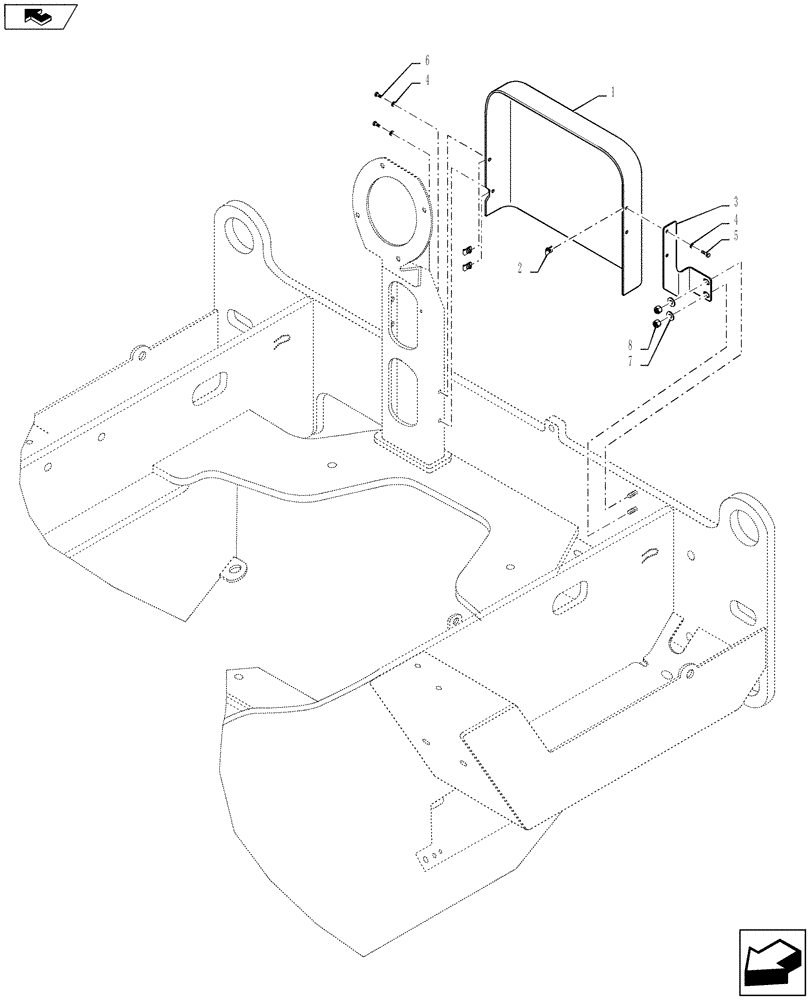

Схема запчастей Case 721F - (10.414.02) - COVERS - DRIVE BELT (WITHOUT AIR CONDITIONING) (10) - ENGINE
4
5
8
6
home
3
7
1
2
4

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

WITHOUT AIR CONDITIONING

1шт.

1

8501024

GUARD

Engine

1шт.

2

87016585

NUT,Spring, M6 x 1

Spring Multi-Thd M6

4шт.

3

87528973

BRACKET

Engine Guard Mtg; Left

1шт.

4

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

4шт.

5

86505530

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

2шт.

6

86639038

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

Engine Guard Mtg; Right

2шт.

7

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

8

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

Выбрано товаров: 9
