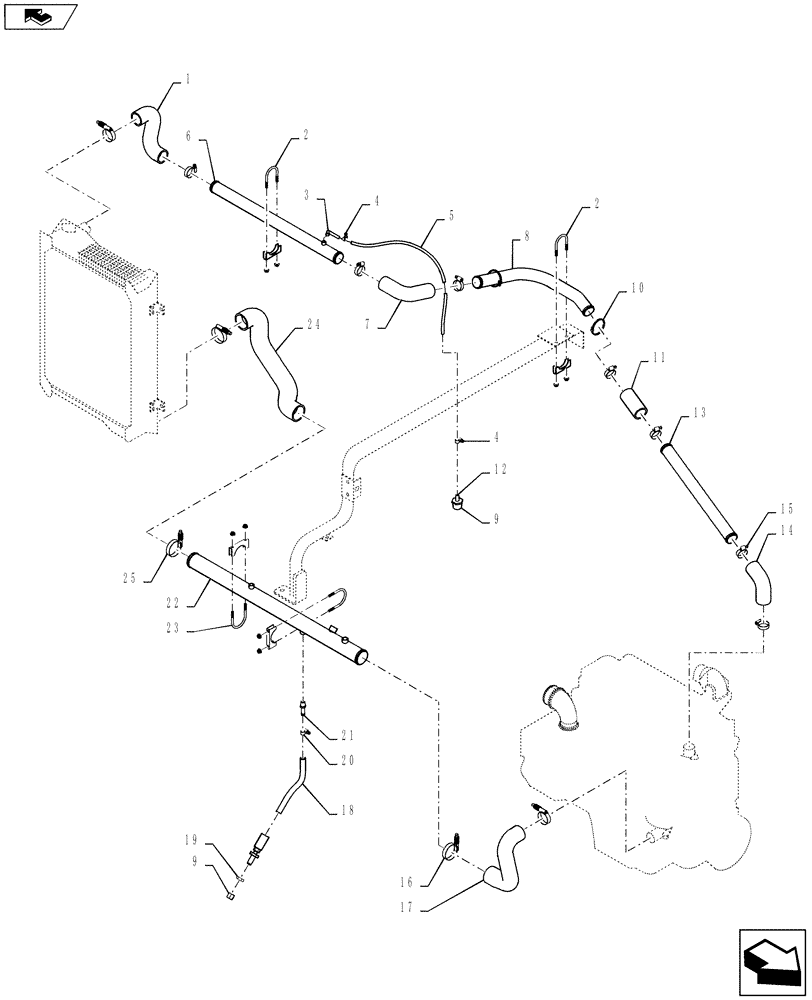

Запчасти Case 721F (10.408.04[01]) - ENGINE COOLING LINES (10) - ENGINE

1

8500083

RADIATOR HOSE,44.50 mm ID x 165,105,79,61 mm, SAE 20R4 CLASS D1

Top

1шт.

2

76082701

CLAMP,48.8mm ID

U-Bolt

2шт.

3

86637719

FITTING,90 Degree, 1/4" Hose x 1/8" NPTF, Barbed

1шт.

4

86625022

HOSE CLAMP,6.3mm - 15.7mm

2шт.

5

307169A1

HOSE

Breather

1шт.

6

84293052

TUBE

Top, Coolant

1шт.

7

84293049

HOSE

Elbow, 90 Deg

1шт.

8

84293051

TUBE

Top, Coolant

1шт.

9

262159

CAP,3/4" - 16 Fem JIC

2шт.

10

435437A1

CABLE TIE,3/16" x 7 1/4"

2шт.

11

8501025

FLEXIBLE HOSE,44.50 mm ID x 110.00 mm, SAE 20R4 Class D1

Coolant, Split

1шт.

12

87635840

VALVE

Check, Venting

1шт.

13

87617019

HYD TUBE,41.2 mm ID x 44.5 mm OD x 513 mm L

Top, Coolant, Engine

1шт.

14

84208238

HOSE

Elbow

1шт.

15

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

7шт.

16

254026A1

HOSE CLAMP,44.45mm - 66.67mm

Constant Torque

2шт.

17

8500084

HOSE,48.00 mm ID, 57.20 mm ID x 235.00 mm, SAE 20R4 Class D1

Engine Bottom

1шт.

18

87536091

HOSE ASSY.

Remote Coolant Drain

1шт.

19

524036

BHD LOCK NUT,Blkhd, 3/4"-16

1шт.

20

87487836

CLAMP,0.56" - 1.06"

Type F, #10

1шт.

21

217-152

FITTING,1/2" Hose Barb x 3/8" Male NPTF

1шт.

22

84302103

TUBE

Bottom, Coolant

1шт.

23

76083038

CLAMP,61mm ID

U-Bolt

2шт.

24

8500907

RADIATOR HOSE,57.20 mm ID x 300,275,95 mm, SAE 20 R4 CLASS D1

Bottom

1шт.

25

L115548

CLAMP,57.15mm - 79.38mm

Constant Torque

3шт.
