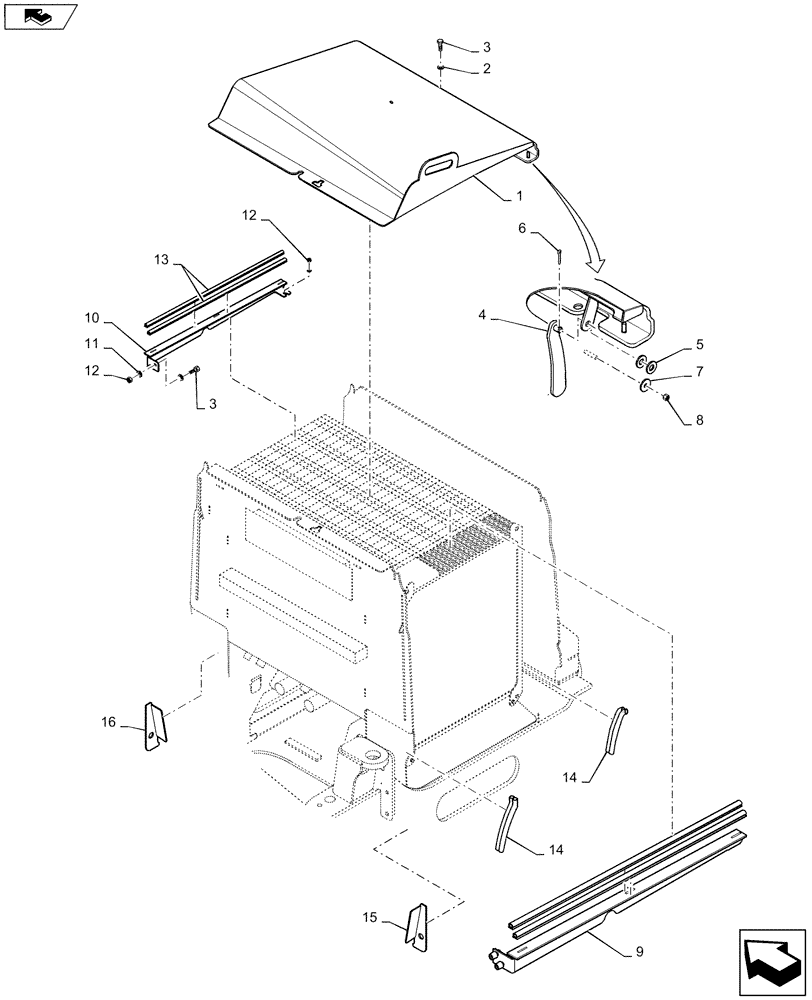

Запчасти Case 721F (10.400.04) - SCREEN, TOP - COMMODITY KING (10) - ENGINE

1

84128657

SCREEN

Top

1шт.

2

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

3шт.

3

43234

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

7шт.

4

84170851

LOCKING BAR

Prop

1шт.

5

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

6

130003

COTTER PIN,3mm OD x 30mm OAL

1шт.

7

86624183

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

1шт.

8

832-10406

NUT,M6 x 1, Cl 8

1шт.

9

84128648

BEAM

LH Seal

1шт.

10

84128659

BEAM

RH Seal

1шт.

11

86624185

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

10шт.

12

832-10408

NUT,M8 x 1.25, Cl 8.8

6шт.

13

47809694

SEAL

Cooling Frame

4шт.

14

84128692

SEAL

285 mm (11 - 7/32 in), Cut From Bulk

4шт.

15

84128684

BRACKET

LH Wheel Well

1шт.

16

84128681

BRACKET

RH Wheel Well

1шт.
