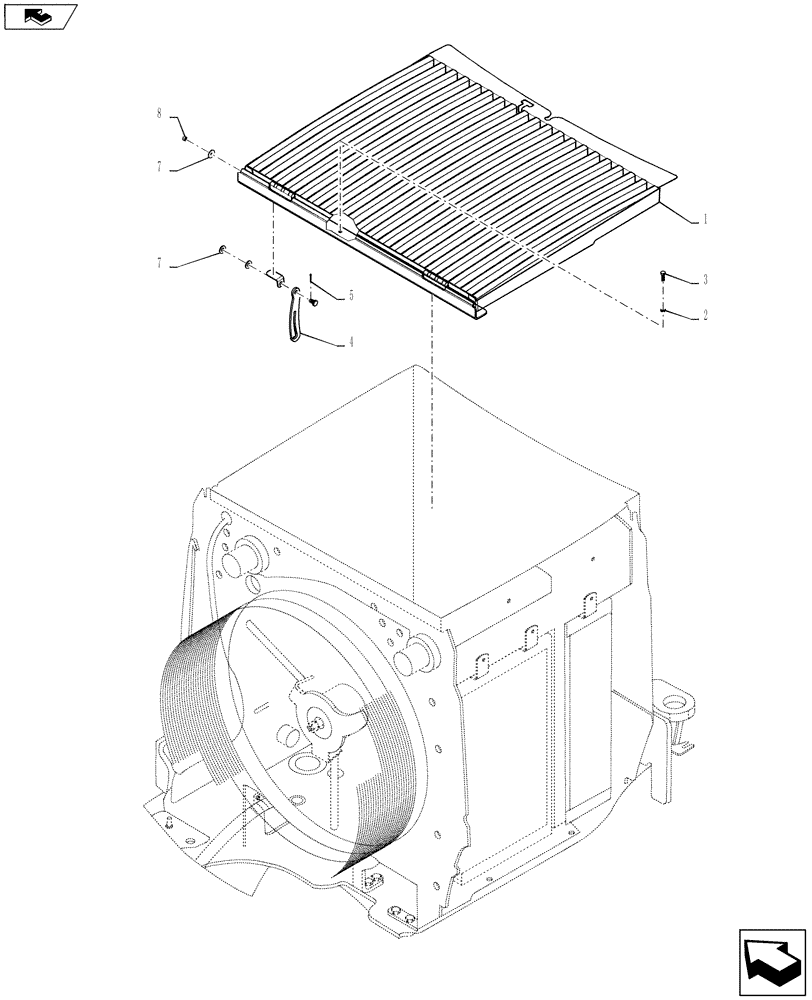

Запчасти Case 721F (10.400.02) - COOLER SCREEN INSTALLATION (10) - ENGINE

1

87308388

SCREEN

1шт.

2

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

3шт.

3

43234

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

3шт.

4

8602476

PROP

Bar

1шт.

5

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

6

130003

COTTER PIN,3mm OD x 30mm OAL

1шт.

7

86624183

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

1шт.

8

832-10406

NUT,M6 x 1, Cl 8

1шт.
