Запчасти Case 721F (10.400.01) - COOLERS INSTALLATION - STANDARD PACKAGE (10) - ENGINE

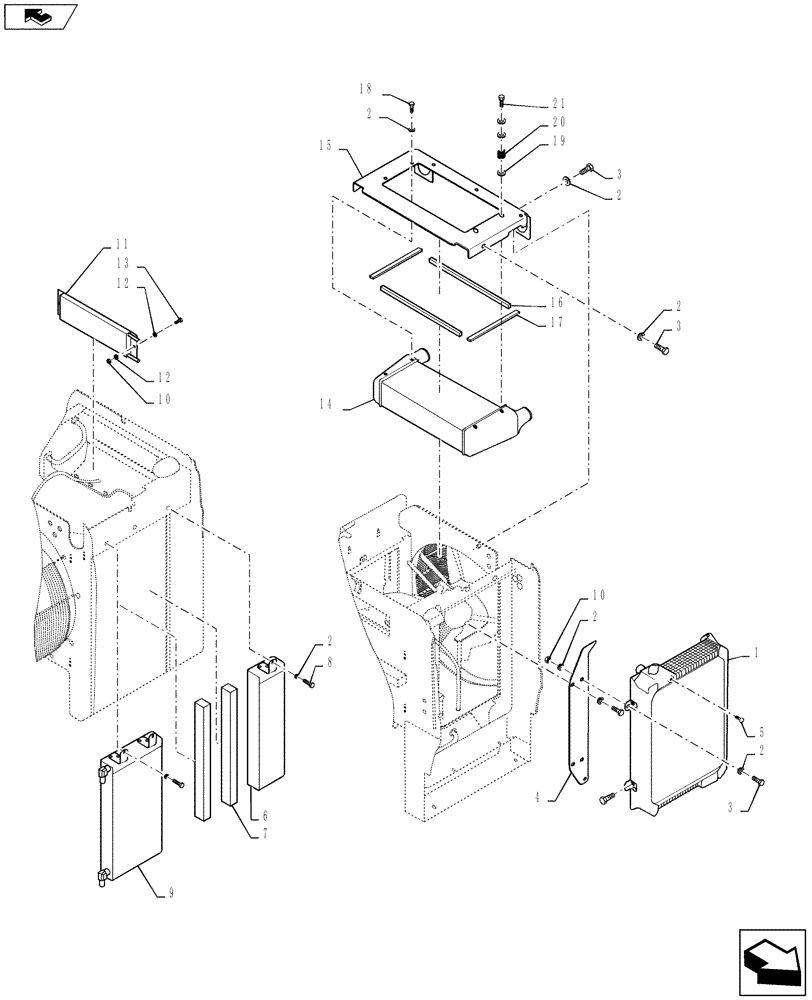

Схема запчастей Case 721F - (10.400.01) - COOLERS INSTALLATION - STANDARD PACKAGE (10) - ENGINE
2
12
12
16
14
18
21
3
2
20
2
8
15
13
17
home
11
2
6
9
3
3
2
2
5
10
1
7
10
4
19

Артикул

Название

Примечание

Количество

1

84232364

RADIATOR

Engine

1шт.

2

892-11008

LOCK WASHER,8mm ID

Spring

19шт.

3

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

12шт.

4

87324042

PLATE

Radiator Make-up

1шт.

5

217-402

PLUG,Hex Hd, 1/8" - 27 NPT

HH 1-8PT

1шт.

6

8501296

OIL COOLER

1шт.

7

8500206

SEALING STRIP,65mm W x 734mm L x 50mm Thk

Oil Cooler Foam

2шт.

8

627-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd

3шт.

9

8501295

OIL COOLER

Transmission

1шт.

10

832-10408

NUT,M8 x 1.25, Cl 8.8

6шт.

11

347615A3

FUEL COOLER

Fuel

1шт.

12

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

13

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

14

347613A1

AFTERCOOLER

Charge Air

1шт.

15

84227961

PLATE

Charge Air

1шт.

16

8500144

SEAL

Charge Air, Bulb

2шт.

17

8500143

FOAM INSULATION,9mm W x 290mm L x 3mm Thk

Charge Air, Foam

2шт.

18

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

2шт.

19

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

6шт.

20

386040R1

SPRING

Poppet Return

2шт.

21

84591180

HEX SOC SCREW,M8 x 16mm, Cl 12.9

2шт.

Выбрано товаров: 21
