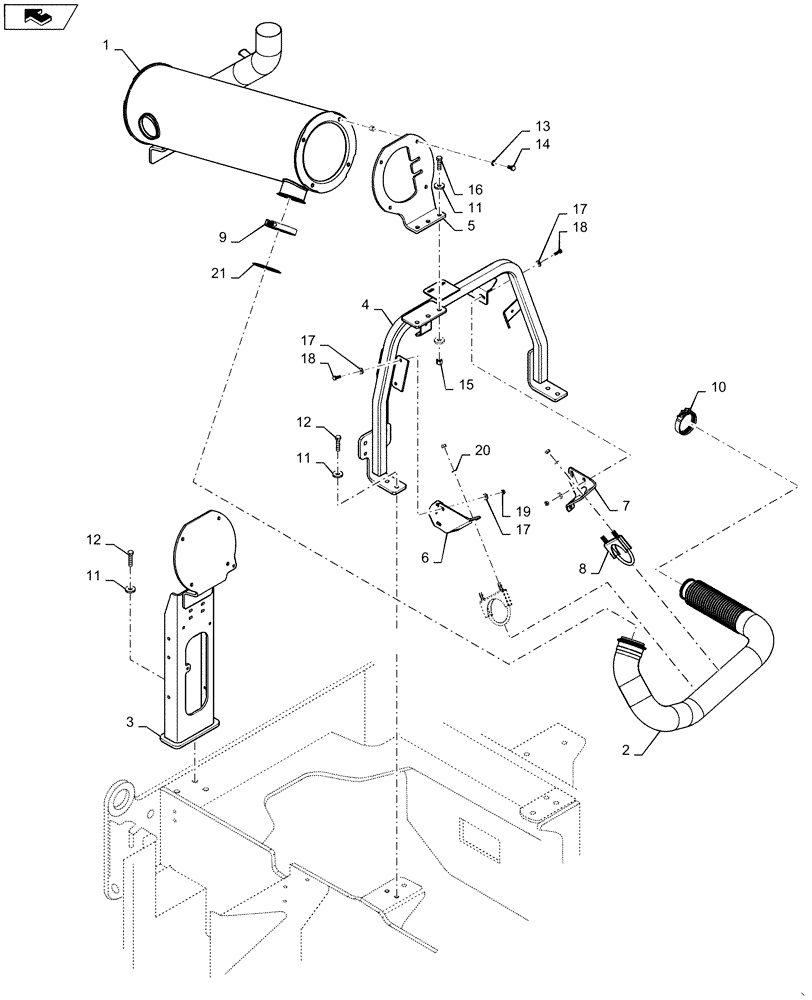

Запчасти Case 721F (10.254.02[02]) - EXHAUST - MUFFLER AND INTAKE, TIER 2 (10) - ENGINE

1

84338447

MUFFLER

1шт.

2

84427622

EXHAUST SYSTEM PIPE

1шт.

3

84256318

BRACKET, SUPPORTING

Muffler Rear

1шт.

4

84296173

BRACKET, SUPPORTING

Front Muffler Mount

1шт.

5

84259974

BRACKET, SUPPORTING

Muffler

1шт.

6

84296177

BRACKET, SUPPORTING

Exhaust Pipe

1шт.

7

84555685

BRACKET, SUPPORTING

Right Exhaust

1шт.

8

BN2400371

CLAMP

Muffler

2шт.

9

84417992

CLAMP

1шт.

10

84460193

CLAMP,81mm - 84mm

Retaining

1шт.

11

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

12шт.

12

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

6шт.

13

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

8шт.

14

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

8шт.

15

832-10412

NUT,M12 x 1.75, Cl 8

3шт.

16

827-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

3шт.

17

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

8шт.

18

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

19

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

20

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

21

84348631

SEAL

1шт.
