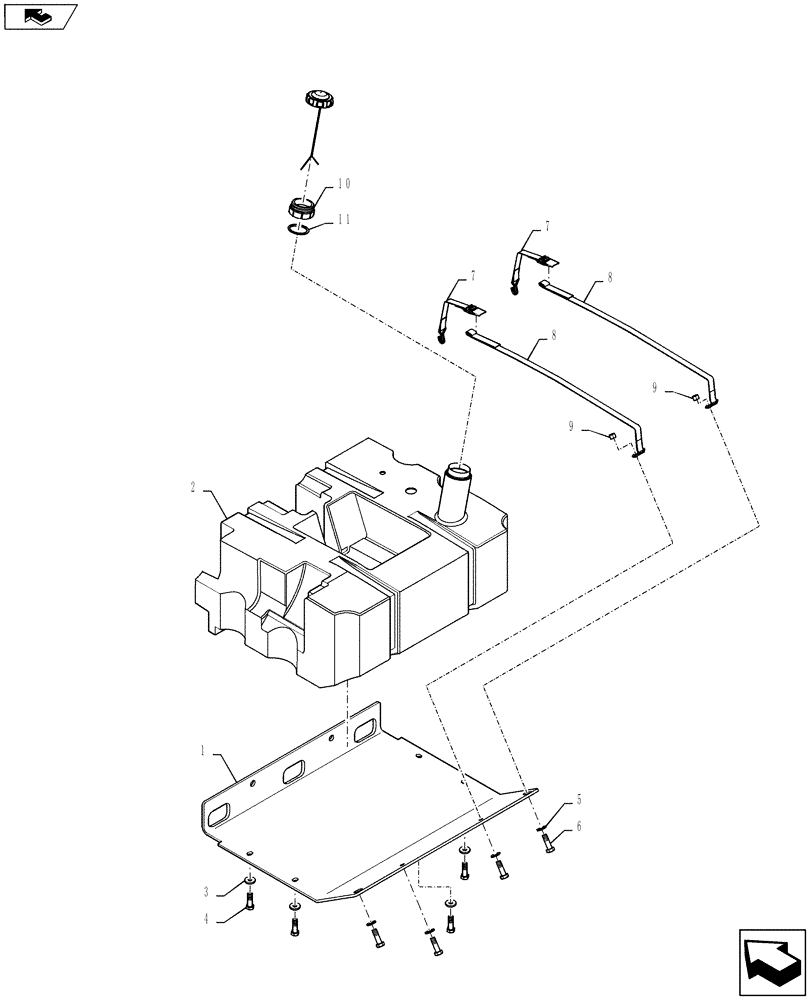

Запчасти Case 721F (10.216.03) - FUEL TANK - HEAVY DUTY (10) - ENGINE

1

8602250

PLATE

Fuel Tank

1шт.

2

8500909

FUEL TANK

1шт.

3

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

6шт.

4

337563

BOLT,M12 x 1.75 x 47.68mm, Cl 10.9

6шт.

5

86625251

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

6

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

2шт.

7

76082250

SECURING STRAP,476mm L x 25mm W

Short

2шт.

8

76082249

SECURING STRAP,1342mm L x 25mm W

Long

2шт.

9

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

10

84130479

ADAPTER

Fuel Tank

1шт.

11

47747008

GASKET

Adaptor

1шт.
