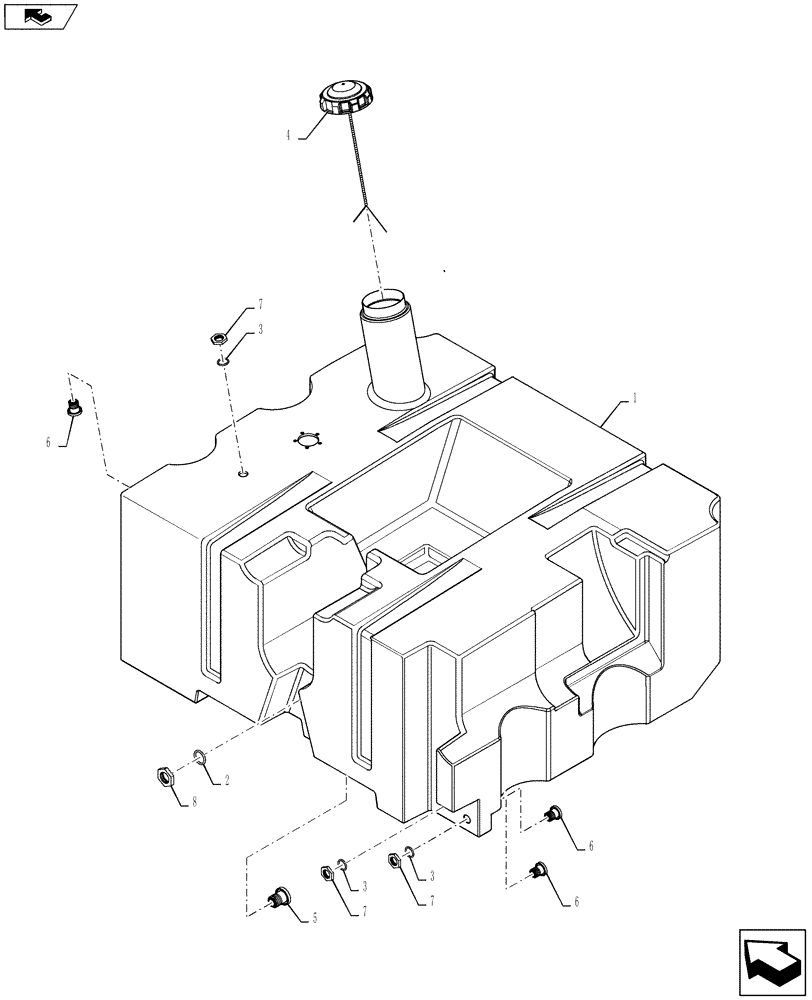

Запчасти Case 721F (10.216.01) - FUEL TANK (10) - ENGINE

1

8500909

FUEL TANK

Assembly

1шт.

2

86629540

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

1шт.

3

9706714

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

3шт.

4

8604443

FILLER CAP

With Gasket

1шт.

5

87707148

FITTING

Bolt Fuel Tank Supply

1шт.

6

87694594

BOLT,3/4" - 16 LH Thread External, 1/4" - 18 NPTF Internal

Fitting, Fuel Tank Drain

3шт.

7

1251791C1

JAM NUT,3/4" - 16 LH Thread

Fuel Tank Drain Fitting

3шт.

8

282709A1

NUT

Fitting

1шт.
