Запчасти Case 721F (10.202.01) - AIR CLEANER ASSEMBLY - NA/EU (10) - ENGINE

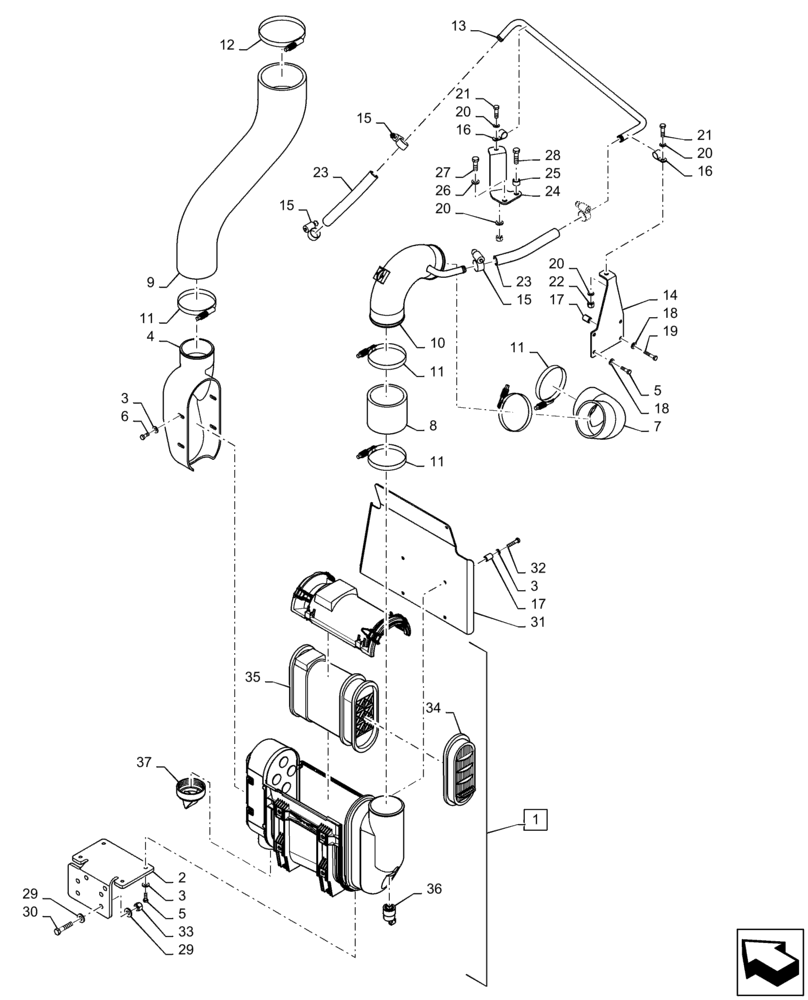

Схема запчастей Case 721F - (10.202.01) - AIR CLEANER ASSEMBLY - NA/EU (10) - ENGINE
18
21
33
2
11
11
35
32
37
36
16
20
29
19
9
20
24
11
8
26
5
31
18
11
14
23
1
6
22
13
23
10
7
34
3
20
20
27
17
21
28
30
3
12
15
5
17
3
29
25
4
16
15
15

Артикул

Название

Примечание

Количество

1

84247028

AIR CLEANER

Incl 34 - 35

1шт.

2

84395971

BRACKET, SUPPORTING

Air Cleaner

1шт.

3

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

12шт.

4

84207843

INLET MANIFOLD

Air Cleaner

1шт.

5

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

6шт.

6

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

7

84190200

90 ELBOW

4"

1шт.

8

8602478

INTAKE AIR HOSE,101.60 mm ID x 100.00 mm, SAE J200

Air Cleaner

1шт.

9

84247030

AIR INTAKE TUBE

1шт.

10

84207381

AIR INTAKE TUBE

1шт.

11

L127771

CLAMP,107.95mm - 130.18mm

Constant Torque Hose Clamp

5шт.

12

L129159

CLAMP,5-1/4" - 6-1/8", Worm Gear

Constant Torque Hose Clamp

1шт.

13

84374319

BRACKET, SUPPORTING

CCV Tube

1шт.

14

84374322

BRACKET, SUPPORTING

CCV Tube Support

1шт.

15

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

2шт.

16

84374321

VENTILATION PIPE

1шт.

17

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

4шт.

18

87748964

SPACER

6шт.

19

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

4шт.

20

827-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

2шт.

21

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

4шт.

22

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

23

832-10410

NUT,M10 x 1.5, Cl 8

Crankcase Vent

2шт.

24

84374323

HOSE,19.05mm ID x 240mm L, SAE 100R4

Bracket, CCV Tube Support

2шт.

25

D44696

BUSHING

Spacer 1/2 Pipe x 1/2

1шт.

26

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

27

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

1шт.

28

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

1шт.

29

895-15012

WASHER,M12 x 28 x 2.5

8шт.

30

827-12055

BOLT,Hex, M12 x 1.75 x 55mm, Cl 10.9

4шт.

31

84300930

HEAT SHIELD

1шт.

32

827-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 10.9

4шт.

33

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

34

87720899

ELEMENT

Secondary Element

1шт.

35

84392297

ELEMENT

Primary Element

1шт.

36

279492A1

RESTRICTION SWITCH

1шт.

37

S113982

CAP

1шт.

Выбрано товаров: 37
