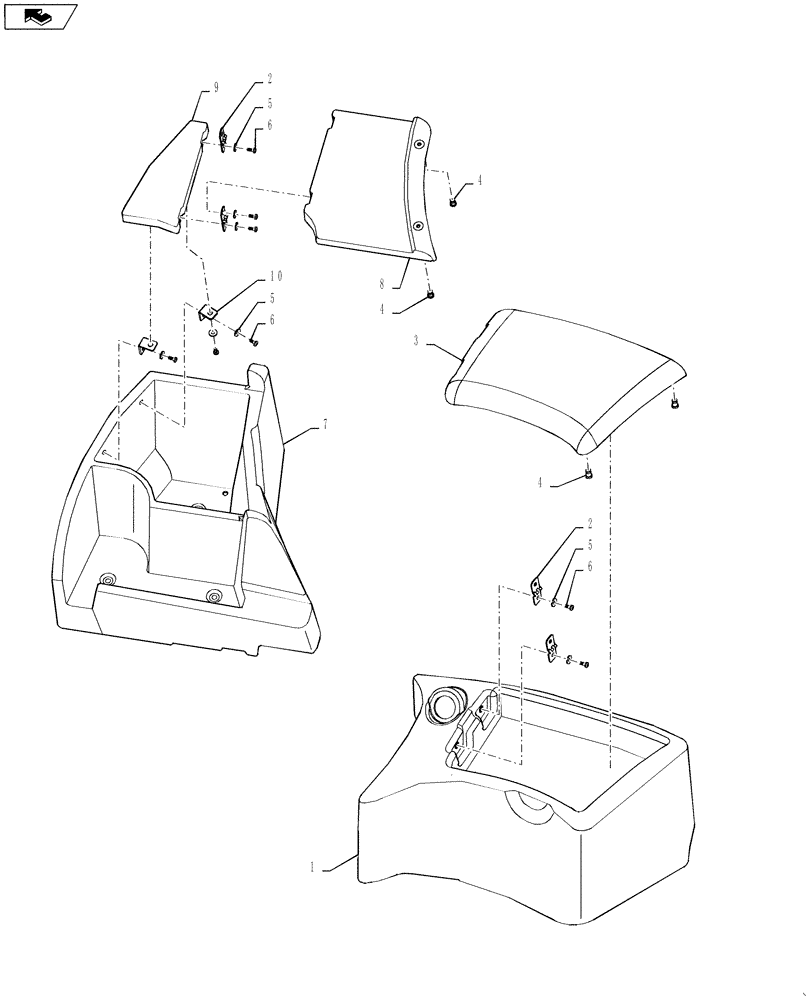

Запчасти Case 721F (90.160.04) - CAB - INTERIOR TRIM - STORAGE COMPARTMENTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

REF

INSTRUCTION

STORAGE BOX, Not Serviced As An Assembly. Incl. Refs. 1 - 6

1шт.

1

84167776

BOX

Storage, Without Latch

1шт.

2

76303262

HINGE

4шт.

3

84167316

COVER

Storage Box, Without Latch

1шт.

4

87614173

PLUG

4шт.

5

87013357

WASHER,5.5mm ID x 15mm OD x 1.6mm Thk

12шт.

6

973537

SCREW,Cross Pan Hd, M5 x 12mm

12шт.

REF

INSTRUCTION

COOL BOX, Not Serviced As An Assembly. Incl. Refs. 2, 4-6, 7 - 10

1шт.

7

84169676

BOX

Storage

1шт.

8

76303035

COVER

Cool Box

1шт.

9

76303348

COVER

Cool Box

1шт.

10

76303437

BRACKET

For Cover

2шт.
