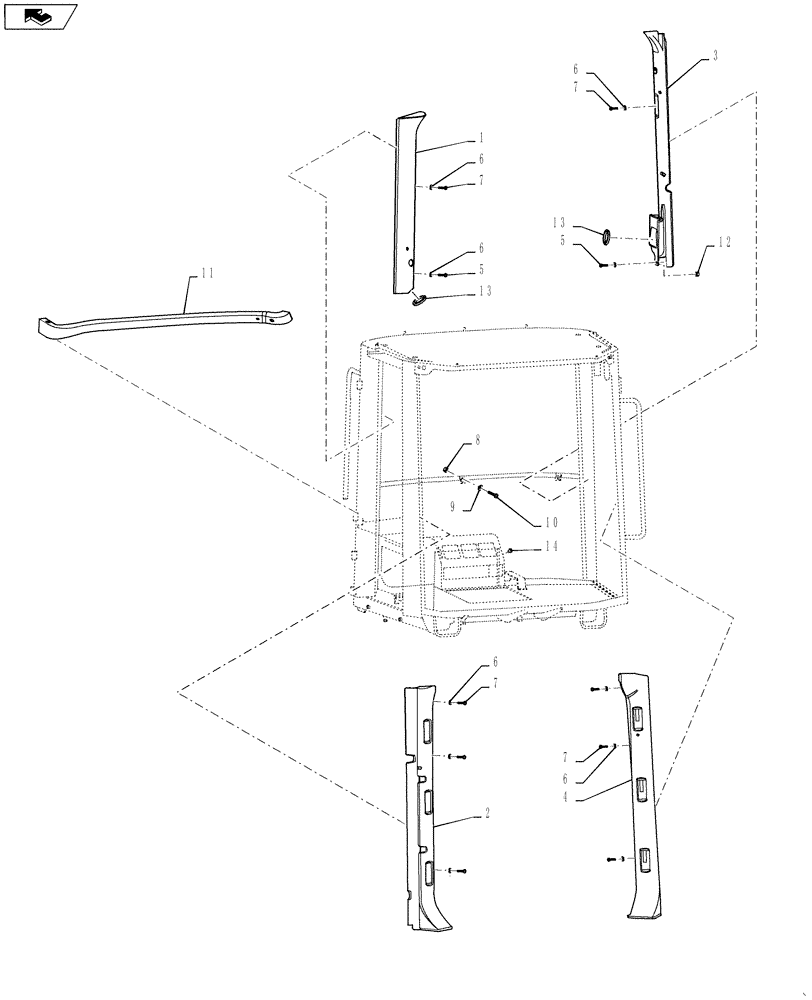

Запчасти Case 721F (90.160.03[02]) - CAB - INTERIOR TRIM - COLUMNS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

76303037

TRIM PANEL

Rear RH

1шт.

2

76303039

PILLAR

Front RH

1шт.

3

84169786

AIR DUCT

TRIM PANEL, Rear LH

1шт.

4

76303038

TRIM PANEL

Front LH

1шт.

5

86511832

SCREW,Phillips Drive, Pan HD, M6 x 30mm, Cl 4.8

2шт.

6

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

10шт.

7

86511828

SCREW,Phillips Drive, Pan HD, M6 x 12mm, Cl 4.8

7шт.

8

87016585

NUT,Spring, M6 x 1

M6 Multi-Thread

3шт.

9

297865A1

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

M6 Corrosion Resistant Coating

3шт.

10

297850A1

SCREW,Cross Pan Hd, M6 x 16

3шт.

11

76303029

COVER

Rear

1шт.

12

76091543

NUT

Spring M6

1шт.

13

76303500

GASKET,Square, 10mm Thk x 70mm ID

LH

1-2шт.

14

369929A1

FASTENER

Christmas Tree

4шт.
