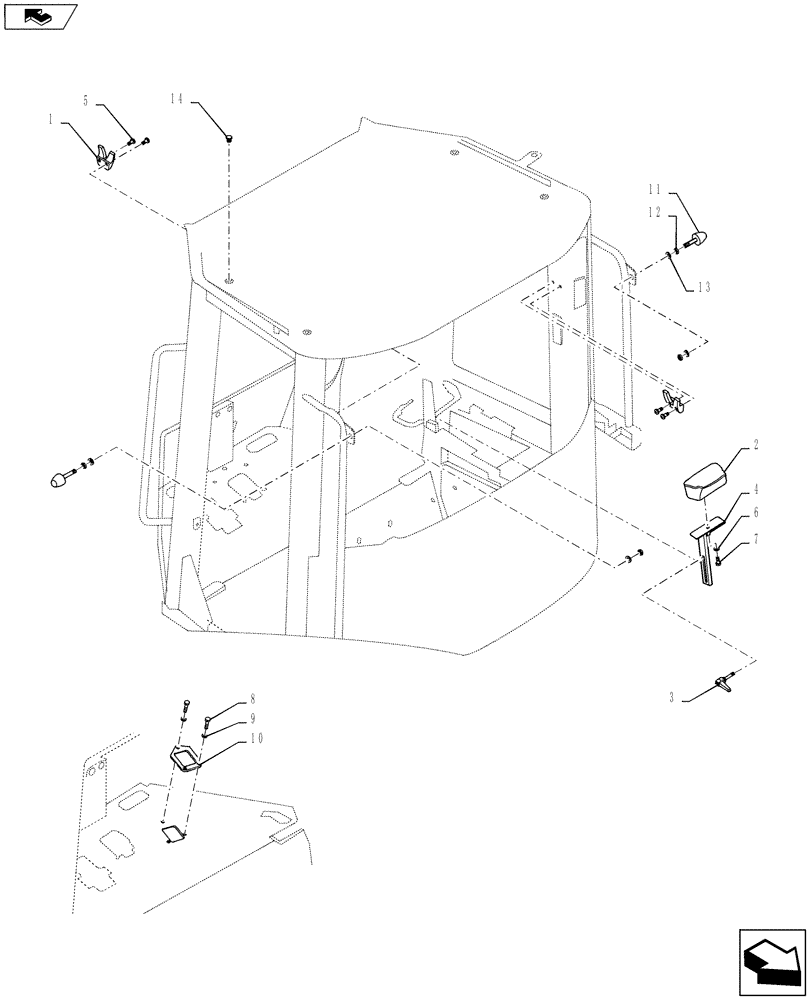

Запчасти Case 721F (90.160.02) - CAB - COMPONENTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

76067422

COAT HOOK

2шт.

2

76303022

ARMREST

1шт.

3

76303338

HANDLE

M8x45

1шт.

4

87696480

SUPPORT

Armrest

1шт.

5

973537

SCREW,Cross Pan Hd, M5 x 12mm

4шт.

6

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

7

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

1шт.

8

86639038

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

3шт.

9

297865A1

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

M6 Corrosion Resitant Coating

3шт.

10

87516291

PLATE

Throttle Spacer

1шт.

11

76303588

RUBBER BUMPER,M10mm x 47mm L

2шт.

12

829-4410

THIN NUT,Thin, M10 x 1.5, Cl 05

4шт.

13

87664050

WASHER,11mm ID x 20mm OD x 2mm Thk

11 X 20 X 2mm CST

4шт.

14

72114876

PLUG

4шт.
