(90.160.01) - CONSOLE ACCESS PLATE

Запчасти Case 721F (90.160.01) - CONSOLE ACCESS PLATE (90) - PLATFORM, CAB, BODYWORK AND DECALS

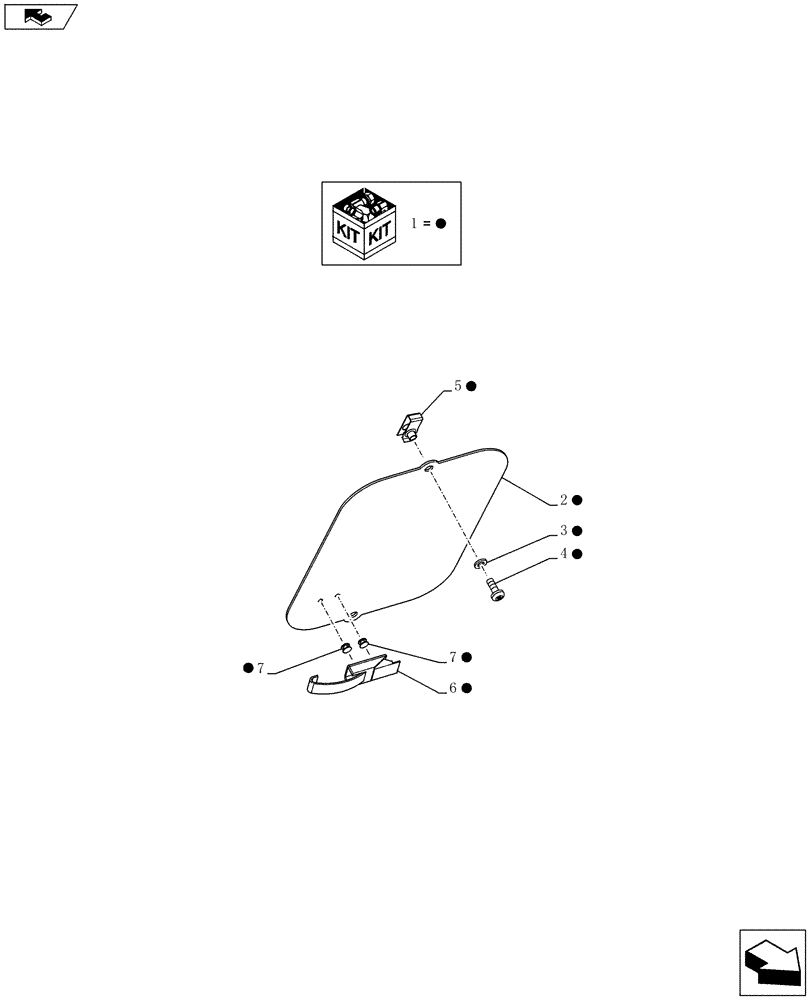

Схема запчастей Case 721F - (90.160.01) - CONSOLE ACCESS PLATE (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
5
7
1
3
1
7
1
1
4
home
1
1
1
1
6
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84602175

PLATE

Console Access Assy

1шт.

2

87754956

PLATE

Console Access

1шт.

3

297865A1

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

Flat

2шт.

4

297850A1

SCREW,Cross Pan Hd, M6 x 16

2шт.

5

404882A1

SPRING NUT,M6

M6 Spring Nut

2шт.

6

60-4640T1

LATCH

1шт.

7

151-515

RIVET,Pop, .146" x .425"

Pop

2шт.
