Запчасти Case 721F (90.154.01[02]) - CAB - WINDOW, RIGHT-HAND-UPPER (90) - PLATFORM, CAB, BODYWORK AND DECALS

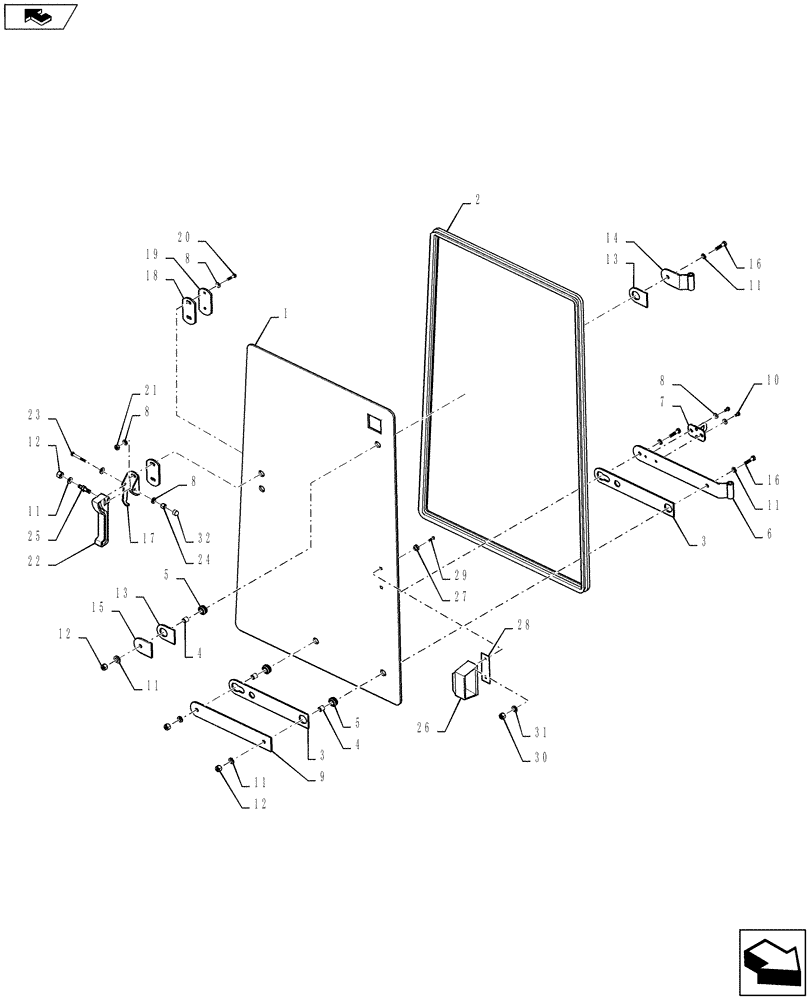

Схема запчастей Case 721F - (90.154.01[02]) - CAB - WINDOW, RIGHT-HAND-UPPER (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
13
12
8
28
11
1
21
4
16
8
32
8
5
7
14
25
12
5
31
12
27
3
6
8
16
4
15
26
10
11
11
24
17
19
29
30
20
11
2
22
23
11
home
18
9
13

Артикул

Название

Примечание

Количество

1

76303230

GLASS,Right Window

Right Window, 7 Mounting Holes, Serial Range: -NCF219051

1шт.

1

84381077

GLASS

Right Window, 9 Mounting Holes, Start Serial: NCF219052

1шт.

2

76303242

GASKET,3220mm L

Right Window

1шт.

3

76303159

GASKET,4mm Thk

Under Hinge

2шт.

4

76094173

SPACER

3шт.

5

4227144

GROMMET,M14 x 25.5 x 19.5

Rubber

3шт.

6

87472962

HINGE

Right Window, Serial Range: -NCF219051

1шт.

6

84388567

HINGE

Right Window, Start Serial: NCF219052

1шт.

7

76303154

BRACKET

Hook; Door

1шт.

8

87664048

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6.6x12x1.6mm CST

8шт.

9

76303210

PLATE

Hinge

1шт.

10

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

2шт.

11

87664049

WASHER,9mm ID x 16mm OD x 1.6mm Thk

9x16x1.6mm CST

7шт.

12

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

13

76303193

GASKET,4mm Thk

Service Door Hinge

2шт.

14

87472961

HINGE

Right Door, Serial Range: -NCF219051

1шт.

14

84477530

HINGE

Right Door, Start Serial: NCF219052

1шт.

15

76303192

PLATE

Hinge

1шт.

16

16043924

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

3шт.

17

84160715

BRACKET

Window Handle

1шт.

18

87522593

GASKET,2mm Thk

Right Window Latch

2шт.

19

76303323

PLATE

Right Handle

1шт.

20

10902624

SCREW,Hex, M6 x 25mm, Cl 8.8, Full Thd

2шт.

21

825-1406

NUT,M6, Cl 8

2шт.

22

76043538

HANDLE

Window Latch

1шт.

23

326361A1

BOLT,Hex, M6 x 1 x 50mm, Cl 10.9

Hex M6x50mm

1шт.

24

832-10406

NUT,M6 x 1, Cl 8

1шт.

25

3805251

PIN

Guide

1шт.

26

97399C1

HANDLE

Window

1шт.

27

F64198

BUMPER,4.98mm ID x 7.92mm OD x 10.21mm L

Nylon; .196ID x .580OD

2шт.

28

R54047

PAD,30mm OD x 0.76mm Thk

Spacer

1шт.

29

13311214

SCREW,Pozidriv Oval Hd, Csk, M5 x 20mm, Cl 5.8, Full Thd

2шт.

30

825-1405

NUT,M5, Cl 8

2шт.

31

895-25005

WASHER,M5 x 15 x 1.6

2шт.

32

87522630

CAP COVER

M6

1шт.

Выбрано товаров: 35
