(90.116.08) - REAR WHEEL WELL FENDERS AND FENDER GUARDS

Запчасти Case 721F (90.116.08) - REAR WHEEL WELL FENDERS AND FENDER GUARDS (90) - PLATFORM, CAB, BODYWORK AND DECALS

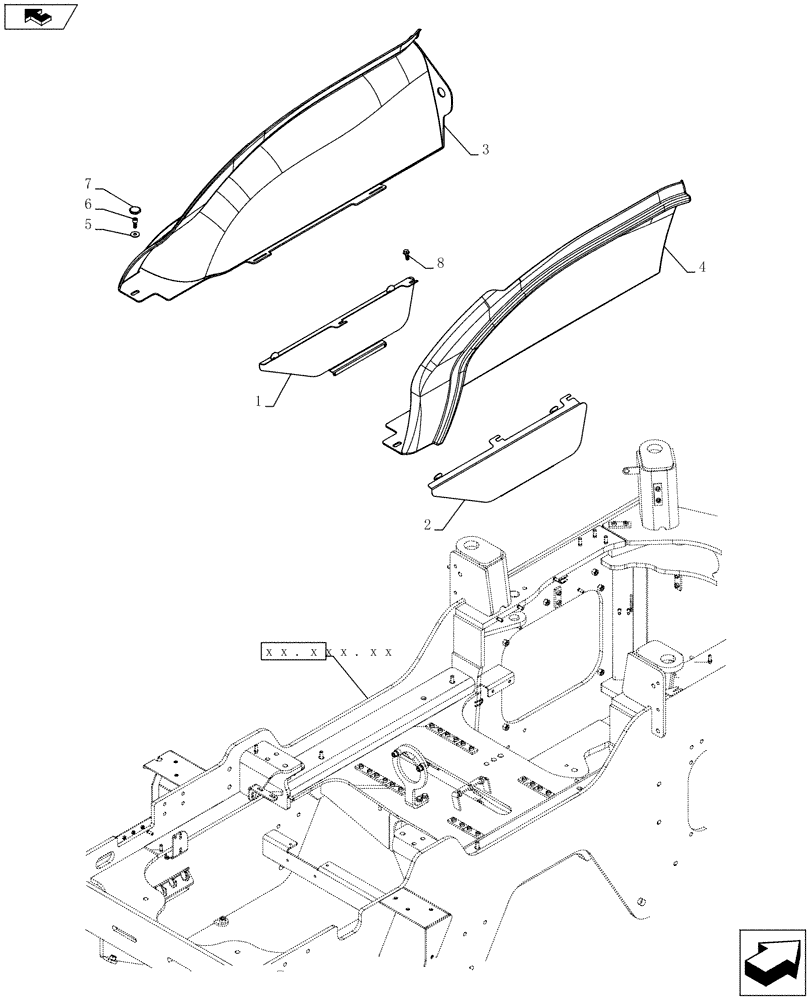

Схема запчастей Case 721F - (90.116.08) - REAR WHEEL WELL FENDERS AND FENDER GUARDS (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
7
3
2
4
6
8
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87591692

GUARD

LH, Power Tan

1шт.

2

87597587

GUARD

RH, Power Tan

1шт.

3

87360678

FENDER

LH, Power Tan

1шт.

4

87360593

FENDER

RH, Power Tan

1шт.

5

86642464

WASHER,11mm ID x 30mm OD x 2.5mm Thk

2шт.

6

120052

HEX SOC SCREW,M10 x 25mm, Cl 8.8

2шт.

7

87323866

KNOB

Fluted Black, M10

2шт.

8

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

4шт.
