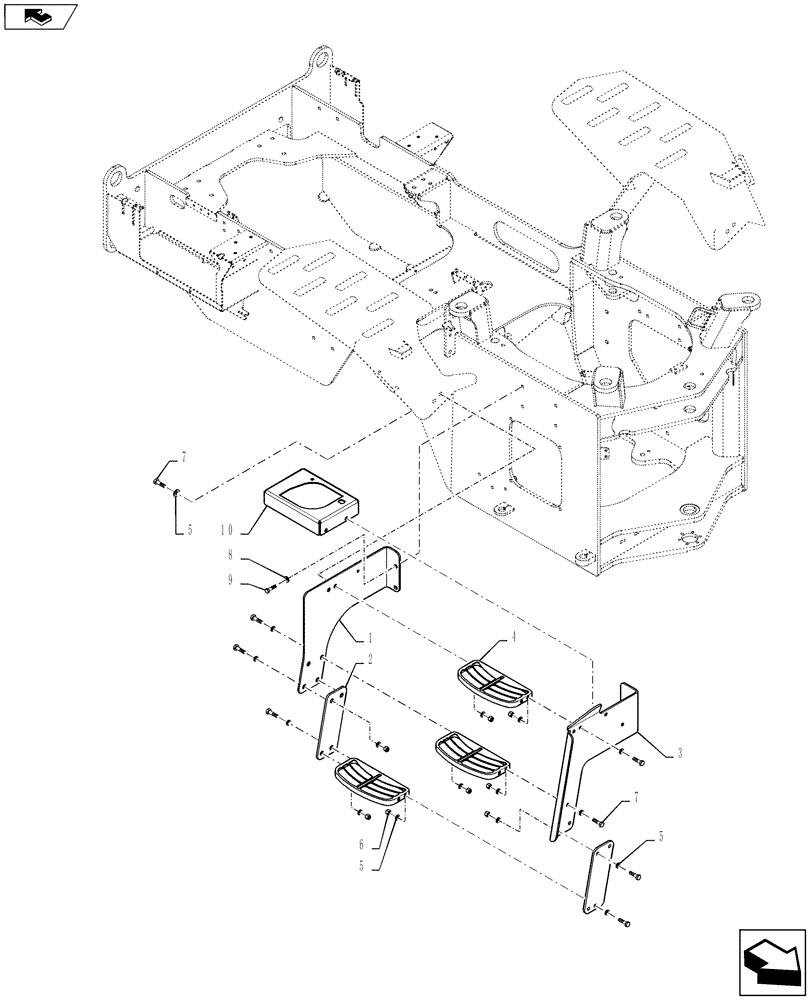

Запчасти Case 721F (90.116.06) - STEPS, RIGHT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84258630

BRACKET, SUPPORTING

RH Step, Rear

1шт.

2

87434096

STRAP

Lower Entry

2шт.

3

84258627

BRACKET, SUPPORTING

RH Step, Front

1шт.

4

87434472

STEP

3шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

40шт.

6

832-10410

NUT,M10 x 1.5, Cl 8

20шт.

7

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

20шт.

8

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

5шт.

9

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

5шт.

10

84373993

PLATFORM

RH Steps, Rear

1шт.
