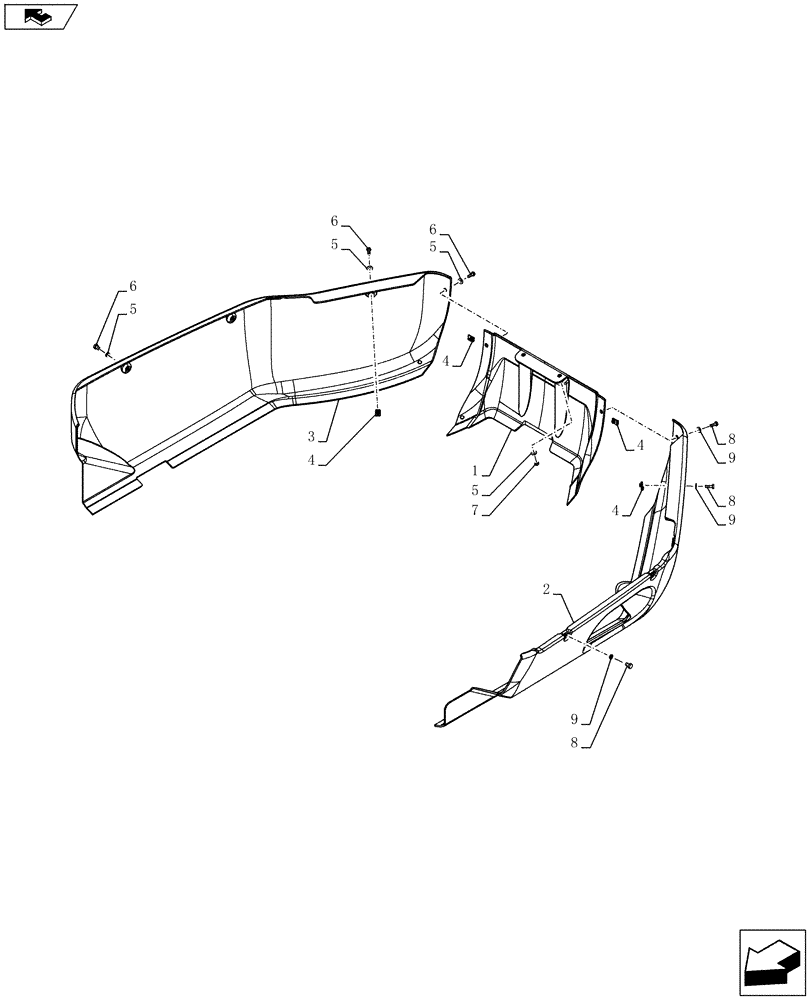

Запчасти Case 721F (90.116.01) - CAB AND CANOPY SKIRTING (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87389202

PLASTIC

Skirt, Front Cab

1шт.

2

87389199

PLASTIC

Skirt, RH Cab

1шт.

3

87389196

PLASTIC

Skirt, LH Cab

1шт.

4

833-40408

NUT,M8, U

6шт.

5

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

6

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

6шт.

7

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

8

87547661

BOLT,Hex, M10 x 16mm, Cl 10.9, Full Thd

4шт.

9

432444A1

SPACER

Retainer

4шт.
