Запчасти Case 721F (90.108.09[03]) - DECALS COMMON TO MODEL AFTER SERIAL # NBF215001 (90) - PLATFORM, CAB, BODYWORK AND DECALS

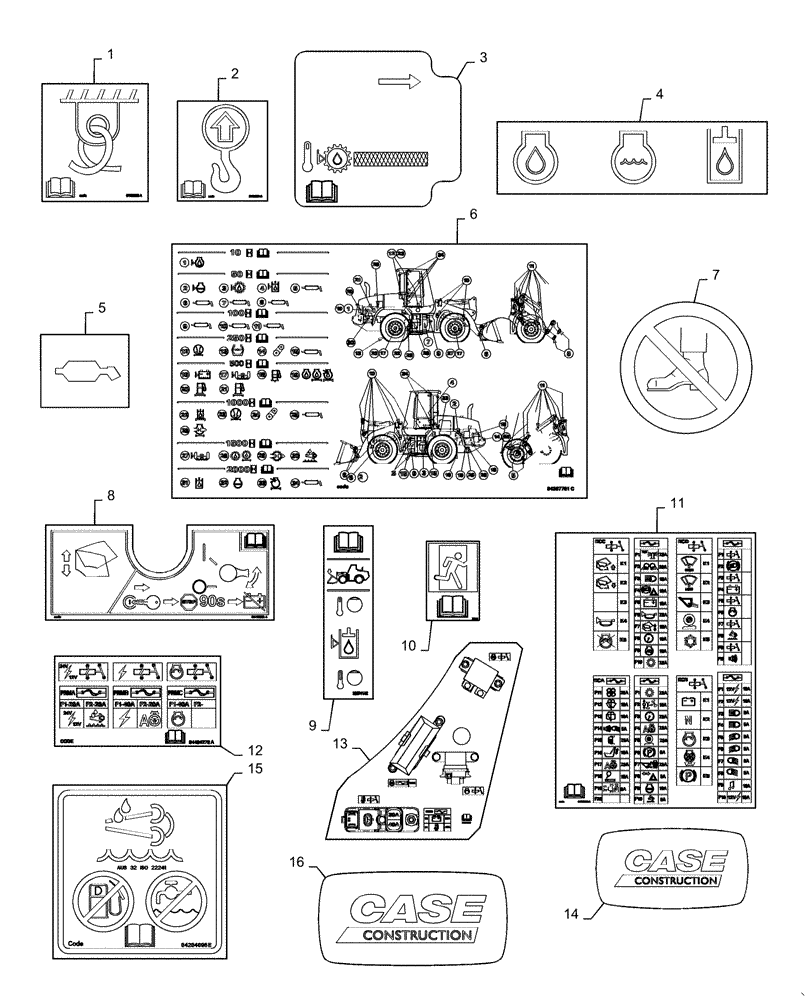

Схема запчастей Case 721F - (90.108.09[03]) - DECALS COMMON TO MODEL AFTER SERIAL # NBF215001 (90) - PLATFORM, CAB, BODYWORK AND DECALS
13
5
1
15
16
12
6
11
8
4
10
2
7
3
9
14

Артикул

Название

Примечание

Количество

1

84409663

DECAL

Tie Down, Start Serial: NBF215001

4шт.

2

84409662

DECAL

Lift Point, Start Serial: NBF215001

4шт.

3

8602227

DECAL

Trans Oil Level, Start Serial: NBF215001

1шт.

4

387149A1

DECAL

Fluid Drains, Start Serial: NBF215001

1шт.

5

187864A1

DECAL

Grease Lube Point, Start Serial: NBF215001

3шт.

6

84397761

DECAL

Maintenance Chart, Start Serial: NBF215001

1шт.

7

E134402

DECAL

No Step, Start Serial: NBF215001

1шт.

8

84419569

DECAL

Master Disconnect, Start Serial: NBF215001

1шт.

9

386741A2

DECAL

Hydraulic Fluid Temp Level, Start Serial: NBF215001

1шт.

10

329051A1

DECAL

Emergency Exit, Start Serial: NBF215001

1шт.

11

84490000

DECAL

Fuse, Start Serial: NBF215001

1шт.

12

84494278

DECAL

Fuse, Start Serial: NBF215001

1шт.

13

84561081

DECAL

Fuse And Relay, Start Serial: NBF215001

1шт.

14

84558035

DECAL,70mm x 58mm H

Case Engine, Start Serial: NBF215001

3шт.

15

84284896

DECAL,DEF TANK identification label

Def fluid, Start Serial: NBF215001

1шт.

16

84558036

DECAL,66mm x 33mm H

Case Engine Medallion, Start Serial: NBF215001

1шт.

Выбрано товаров: 16
