(90.108.09[02]) - DECALS - COMMON TO MODEL

Запчасти Case 721F (90.108.09[02]) - DECALS - COMMON TO MODEL (90) - PLATFORM, CAB, BODYWORK AND DECALS

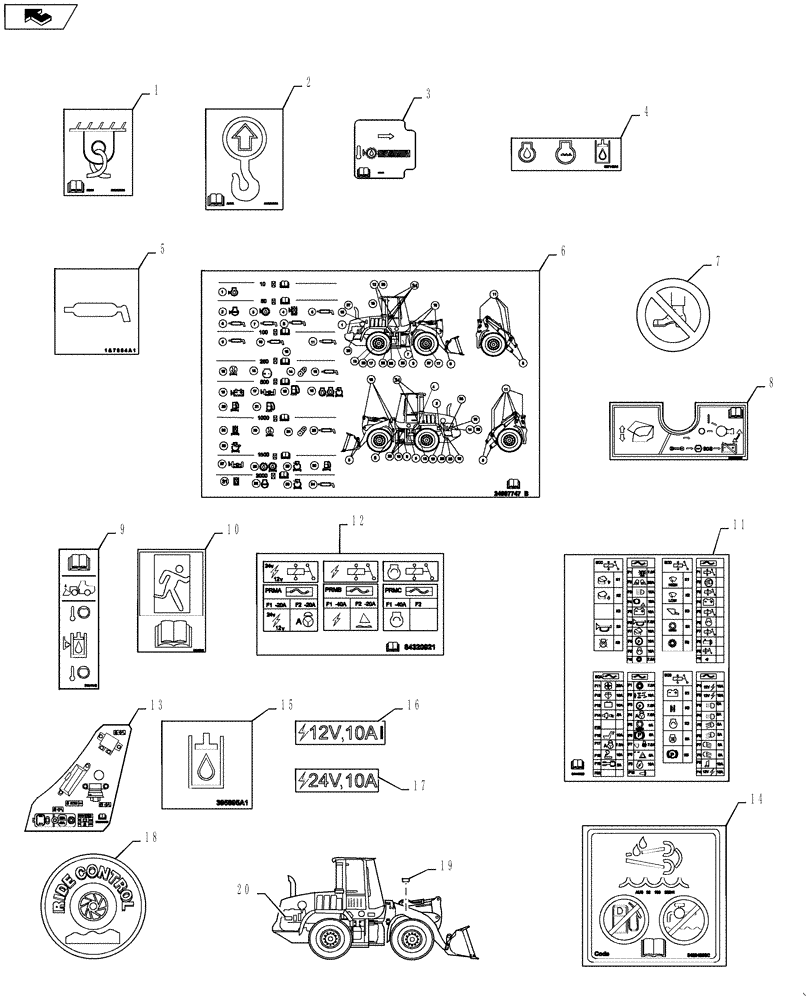

Схема запчастей Case 721F - (90.108.09[02]) - DECALS - COMMON TO MODEL (90) - PLATFORM, CAB, BODYWORK AND DECALS
13
9
1
17
10
4
8
7
11
3
20
2
home
19
15
6
18
12
16
14
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84409663

DECAL

Tie Down

4шт.

2

84409662

DECAL

Lift Point

4шт.

3

8602227

DECAL

Transmission Fluid Level

1шт.

4

387149A1

DECAL

Fluid Drains

1шт.

5

187864A1

DECAL

Grease Lube Point

2шт.

6

84397761

DECAL

Maintenance Chart

1шт.

7

E134402

DECAL

No Step

1шт.

8

84419569

DECAL

Master Disconnect

1шт.

9

386741A2

DECAL

Hydraulic Fluid Temp Level

1шт.

10

329051A1

DECAL

Emergency Exit (EU)

1шт.

11

84410935

DECAL

Fuse

1шт.

12

84328921

DECAL

Fuse

1шт.

13

84125381

DECAL

Fuse and Relay

1шт.

14

84284896

DECAL,DEF TANK identification label

DEF Tank

1шт.

15

395895A1

DECAL

Hydraulic Oil

1шт.

16

365935A2

DECAL

12v, 10a

1шт.

17

364741A1

DECAL

24v, 10a

1шт.

18

304083A1

DECAL

Ride Control; If Applicable

2шт.

19

76085355

REFLECTOR

2шт.

20

D55216

PAD,2" x 9"

2X9"; Not Shown

1шт.
