Запчасти Case 721F (90.108.04) - DECALS - ENGLISH (90) - PLATFORM, CAB, BODYWORK AND DECALS

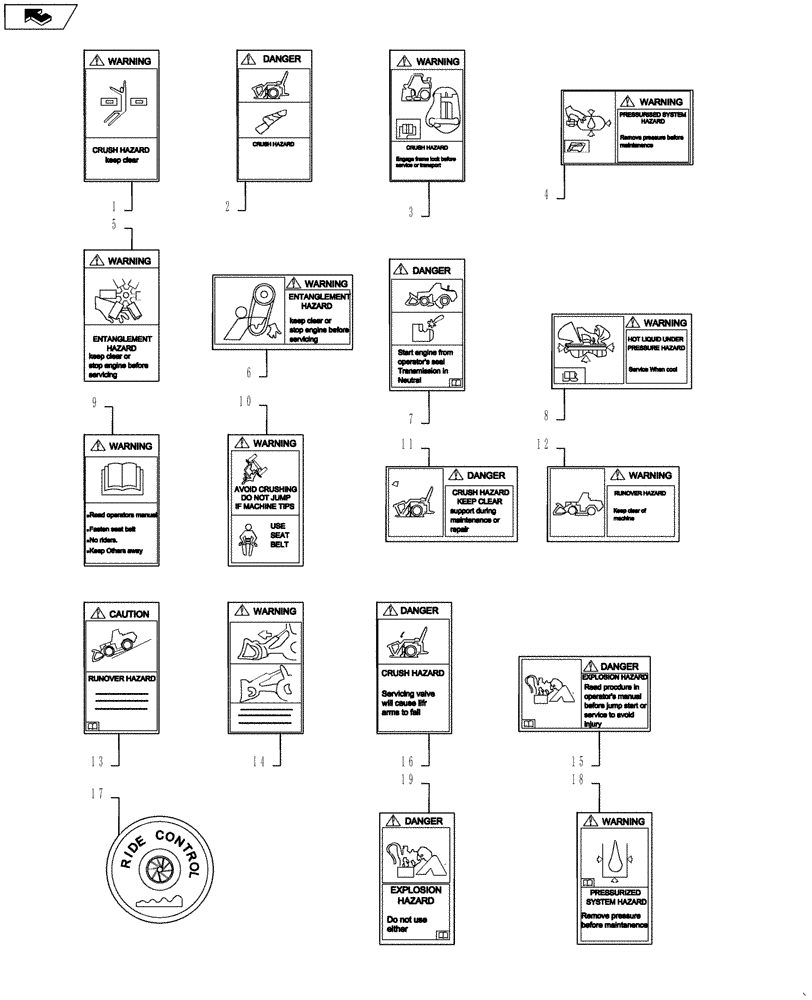

Схема запчастей Case 721F - (90.108.04) - DECALS - ENGLISH (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
4
home
8
6
3
1
10
7
15
19
2
14
18
13
16
9
17
11
12

Артикул

Название

Примечание

Количество

1

323694A1

DECAL

Warning, Crush Hazard

2шт.

2

407737A2

DECAL

Lift Arm Support

1шт.

3

329047A1

DECAL

Warning, Crush Hazard

1шт.

4

328904A1

DECAL

Warning, Pressurized System Hazard

2-3шт.

5

87488606

DECAL

Warning, Fan

3шт.

6

388112A1

DECAL

Warning, Belt Entanglement

1шт.

7

87488616

DECAL

Danger, Starting In Gear

1шт.

8

329044A1

WARNING DECAL,168mm x 88mm H

Hot Liquid Hazard

1шт.

9

382622A1

DECAL,60mm x 90mm H

Warning, Read The Operator's Manual

1шт.

10

321-7030

WARNING DECAL

Do Not Jump

1шт.

11

328754A1

DANGER DECAL

Danger, Crush Hazard

1шт.

12

328752A1

DECAL

Warning, Runover Hazard

1шт.

13

329049A1

DECAL

Caution, Block Wheels

1шт.

14

364742A1

DECAL

Warning, Check Attachment

1шт.

15

412471A1

DECAL

Danger, Battery Explosion Hazard

2шт.

16

87453132

DECAL

Danger Crush Hazard, Only Installed if Equipped With Ride Control

2шт.

17

304083A1

DECAL

Ride Control, Only Installed if Equipped With Ride Control

1шт.

18

335889A1

DECAL

Warning, Pressurized System Hazard

2шт.

19

8603092

WARNING DECAL,55mm x 95mm H

Warning, Ether Explosion, Only Installed if Equipped With Grid Heater

3шт.

Выбрано товаров: 19
