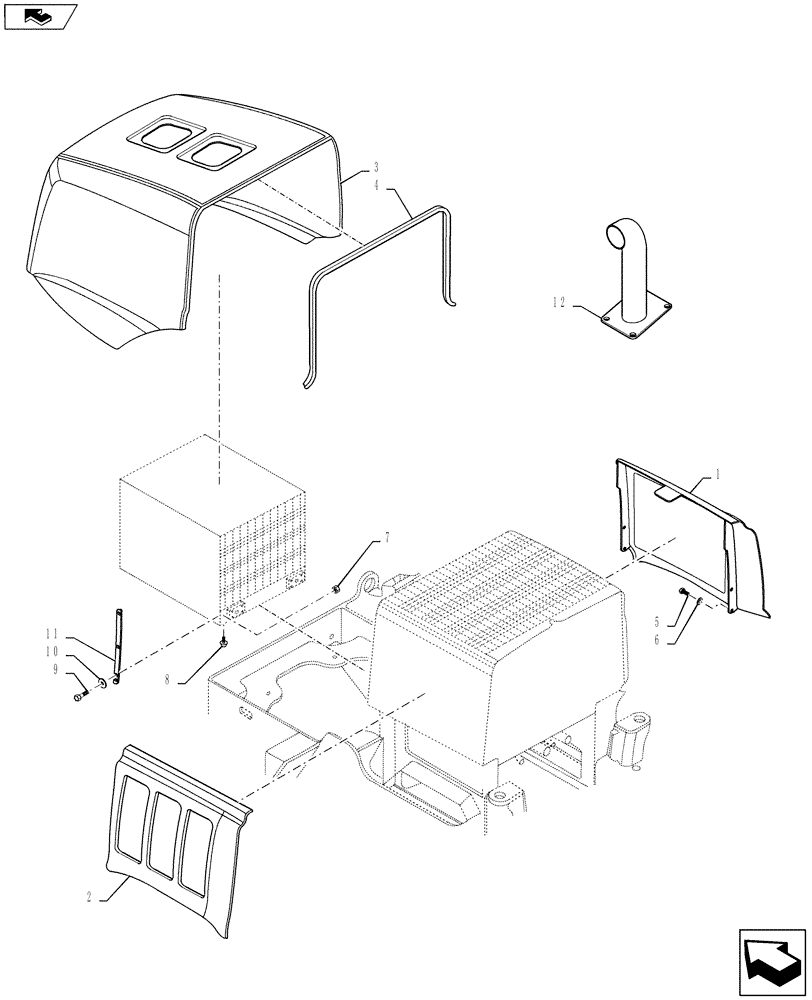

Запчасти Case 721F (90.105.02[02]) - HOOD INSTALLATION (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87308668

PANEL

Left Hand; Standard Models

1шт.

1

84128669

ENGINE HOOD PANEL

Left Hand; Commodity King Models

1шт.

2

87308682

PANEL

Right Hand; Standard Models

1шт.

2

84128671

ENGINE HOOD PANEL

Right Hand; Commodity King Models

1шт.

3

84251581

ENGINE HOOD

Power Tan

1шт.

4

8605846

RUBBER SEAL,2385mm L

Hood

1шт.

5

87632741

STEP BOLT,M8 x 16mm, Cl 12.9

M6 8X16MM-SHOULDER 12.9 ZND

6шт.

6

495-81144

WASHER,0.41" ID x 1.75" OD x 0.06" Thk

6шт.

7

86637931

JAM NUT,Jam, 5/16"-18, G5

2шт.

8

87109195

BUMPER,5/16" - 18, 38mm OD

Rubber

2шт.

9

86639038

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

6шт.

10

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

6шт.

11

444931A1

PLATE

Backing

2шт.

12

8500375

EXHAUST SYSTEM PIPE

1шт.
