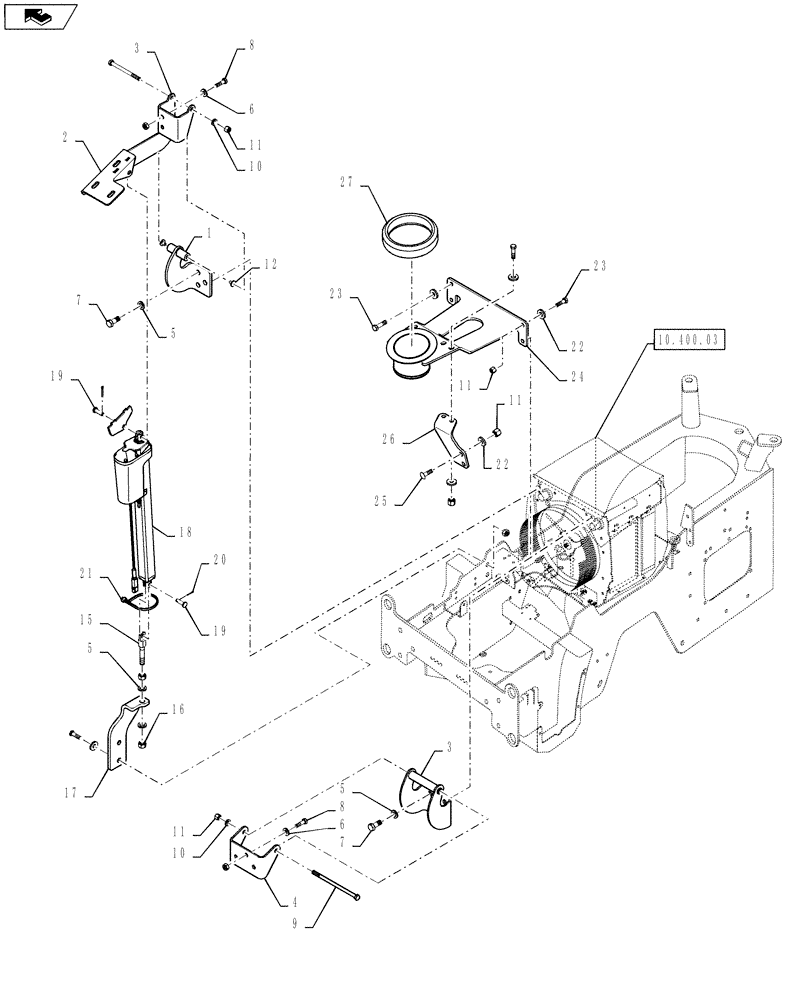

Запчасти Case 721F (90.105.02[01]) - HOOD INSTALLATION (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

8605371

LATCH HOOK

Left

1шт.

2

87625616

BRACKET

Hood, Left

1шт.

3

8605372

HINGE

Hood Mount; Right

1шт.

4

8501151

HINGE

Hood; Right

1шт.

5

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

10шт.

6

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

8шт.

7

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

6шт.

8

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

8шт.

9

827-12220

BOLT,Hex, M12 x 1.75 x 220mm, Cl 10.9

1шт.

10

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

11

832-10412

NUT,M12 x 1.75, Cl 8

6шт.

12

382495A1

BUSHING

Flange

4шт.

13

827-12140

BOLT,Hex, M12 x 1.75 x 140mm, Cl 10.9

1шт.

14

8602409

BRACKET

Electric Jack Base

1шт.

15

87531205

ROD

Jack Adjuster

1шт.

16

829-1416

NUT,M16, Cl 10

2шт.

17

827-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

2шт.

18

47382420

ACTUATOR

375mm Stroke

1шт.

19

728-1240

CLEVIS PIN,M12 x 40

2шт.

20

733-3220

COTTER PIN,M3.2 x 20

2шт.

21

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.

22

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

10шт.

23

827-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

6шт.

24

84354839

BRACKET

Air Intake

1шт.

25

811-12040

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 40mm, Cl 8.8

2шт.

26

84260034

BRACKET, SUPPORTING

Muffler Forward Support

1шт.

27

8500403

SEAL

Air Cleaner

1шт.
