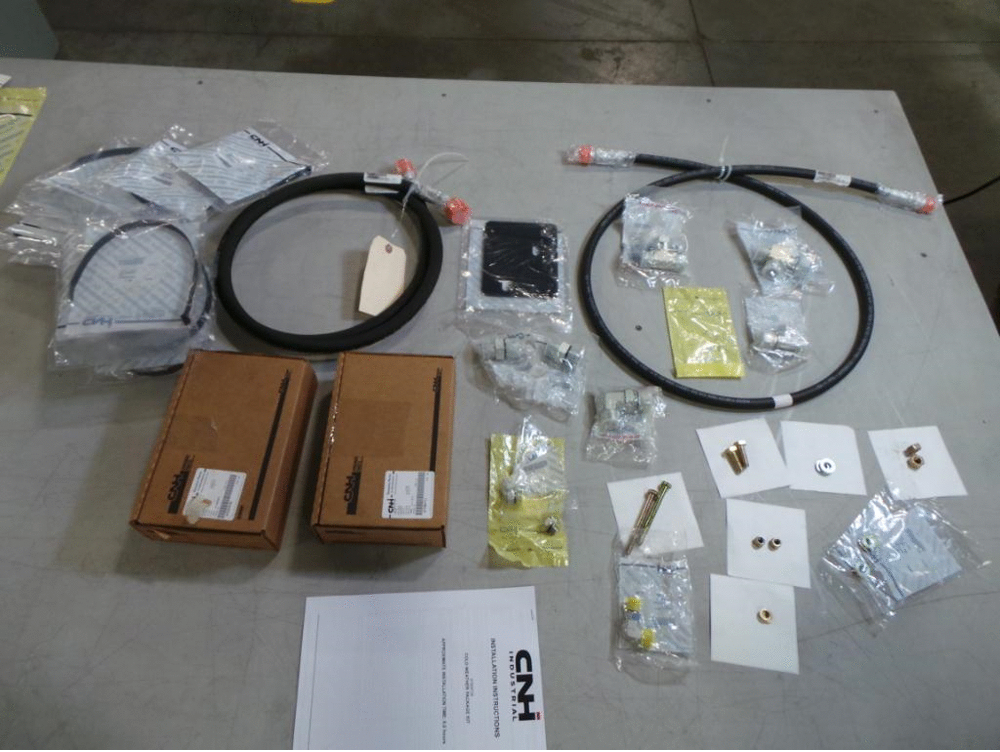

Запчасти Case 721F (88.130.02) - KIT COLD WEATHER FIX (88) - ACCESSORIES

1

47826734

KIT

Incl 2 - 24

1шт.

2

47826733

INSTRUCTION

1шт.

3

47826729

PLATE

1шт.

4

47707298

CHECK VALVE

1шт.

5

84100209

90 ELBOW,1"-14 ORFS x M27 x 2 ORB

1шт.

6

47826855

HOSE

1шт.

7

47795711

VALVE

1шт.

8

201-131

HYD CONNECTOR,1"-12 ORFS x 9/16"-18 ORB

2шт.

9

701-439

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Female ORFS

1шт.

10

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

1шт.

11

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

1шт.

12

47826731

HOSE

Used on Models 821,921,W190and W230

1шт.

13

47795710

HOSE

Udsed on Models 721 and W170

1шт.

14

84266050

CABLE TIE,384mm L, Polyamide

14шт.

15

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

16

827-8090

BOLT,Hex, M8 x 1.25 x 90mm, Cl 10.9

2шт.

17

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

18

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

19

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

20

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

21

371838A1

SPACER,9.5mm ID x 19.1mm OD x 10mm Thk

2шт.

22

47707275

PLATE

1шт.

23

47826730

VALVE

1шт.

24

220064A1

PLUG,M14 x 1.5, ORB

2шт.
