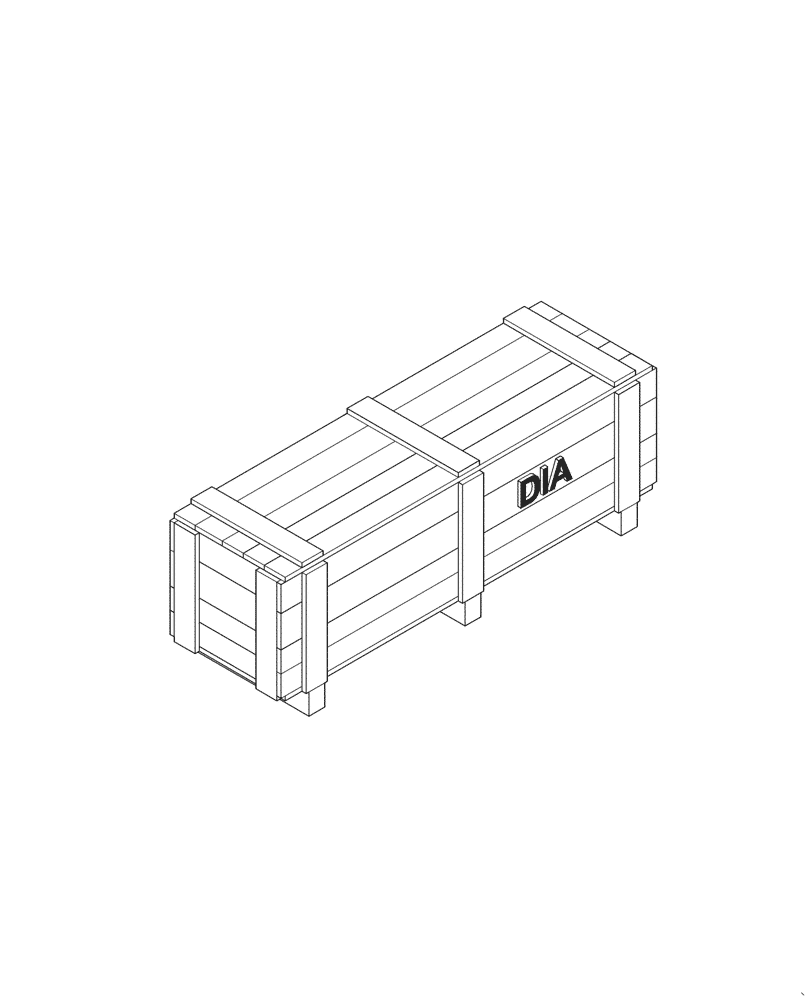

Запчасти Case 721F (88.050.01) - DIA KIT - AIR CONDITIONER CAB (88) - ACCESSORIES

1

48148676

AIR CONDITIONING, Incl 2 - 59

KIT

1шт.

2

122579A1

SWITCH, A/C LOW PRES

1шт.

3

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

1шт.

4

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

1шт.

5

232948A1

SWITCH, A/C HIGH PRE

1шт.

6

31-1081

CLAMP

3шт.

7

367489A1

BLOCK

TUBE MOUNTING

2шт.

8

379374A1

BLOCK

TUBE MOUNTING

1шт.

9

433723A1

CLAMP

RECEIVER/DRYER

2шт.

10

47821526

RECEIVER-DRYER

HORIZONTAL

1шт.

11

515-24238

CLAMP,15/16", Insul, 7/16" Bolt

1шт.

12

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

6шт.

13

827-6040

BOLT,Hex, M6 x 40mm, Cl 10.9

2шт.

14

832-10406

NUT,M6 x 1, Cl 8

2шт.

15

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

16

84191331

A/C HOSE

CONDENSER TO DRYER

1шт.

17

84191332

A/C HOSE

DRYER TO CAB

1шт.

18

84373399

HOSE ASSY.

CAB TO COMPRESSOR

1шт.

19

84373400

HOSE ASSY.

COMPRESSOR TO CONDENSER

1шт.

20

84411602

PLATE

A/C CONDENSER

1шт.

21

8500878

CONDENSER

1шт.

22

87312626

RELAY,24V

1шт.

23

87587637

PLASTIC-RUBBER TUBE

2шт.

24

892-11008

LOCK WASHER,8mm ID

4шт.

25

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

26

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

27

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

28

L11541

CABLE TIE,203.2mm L, Nylon

5шт.

29

121411A1

FUSE,7.5A, Mini, Brown

1шт.

30

47502435

GUARD

ENGINE ACCESSORY W/ AC

1шт.

31

47501019

BELT

ALTERNATOR WITH A/C

1шт.

32

827-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9

3шт.

33

8500795

AIRCOND. COMPRESSOR,W/ Pulley

1шт.

34

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

3шт.

36

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

2шт.

37

84169308

PANEL

HVAC

1шт.

38

84169304

SWITCH

ROTARY

1шт.

39

84150190

DECAL

HVAC

1шт.

40

84146279

SWITCH

ROCKER, RECIRCULATION

1шт.

41

84146280

SWITCH

ROCKER, A/C

1шт.

42

84169306

POTENTIOMETER,50,000 Ohm

TEMPERATURE

1шт.

43

1994720C1

KNOB

CONTROL

2шт.

44

87529498

EVAPORATOR

1шт.

45

87529621

THERMOSTATIC SWITCH,Air Conditioning

1шт.

46

87577360

SPRING CLIP

THERMOSTAT

1шт.

47

87728777

SEAL

1шт.

48

48070854

FREON JOINT

TUBE

1шт.

49

87529495

VALVE, THERMAL EXPAN,Air Conditioning

1шт.

50

87529505

TUBE

FOR EVAPORATOR

1шт.

51

12604179

SPRING WASHER

2шт.

52

14450483

O-RING,1.8mm Thk x 6.7mm ID

1шт.

53

14450783

O-RING,13.4mm ID x 2.4mm Width

3шт.

54

87625620

HEX SOC SCREW,M5 x 40mm, Cl 8.8

2шт.

55

356464

HEX SOC SCREW,M6 x 50mm, Cl 8.8

2шт.

56

388113A1

DECAL

WARNING

1шт.

57

48014400

DECAL

MAINTENANCE CHART

1шт.

58

48014398

DECAL

MAINTENANCE CHART

1шт.

59

48148681

INSTRUCTION

1шт.
