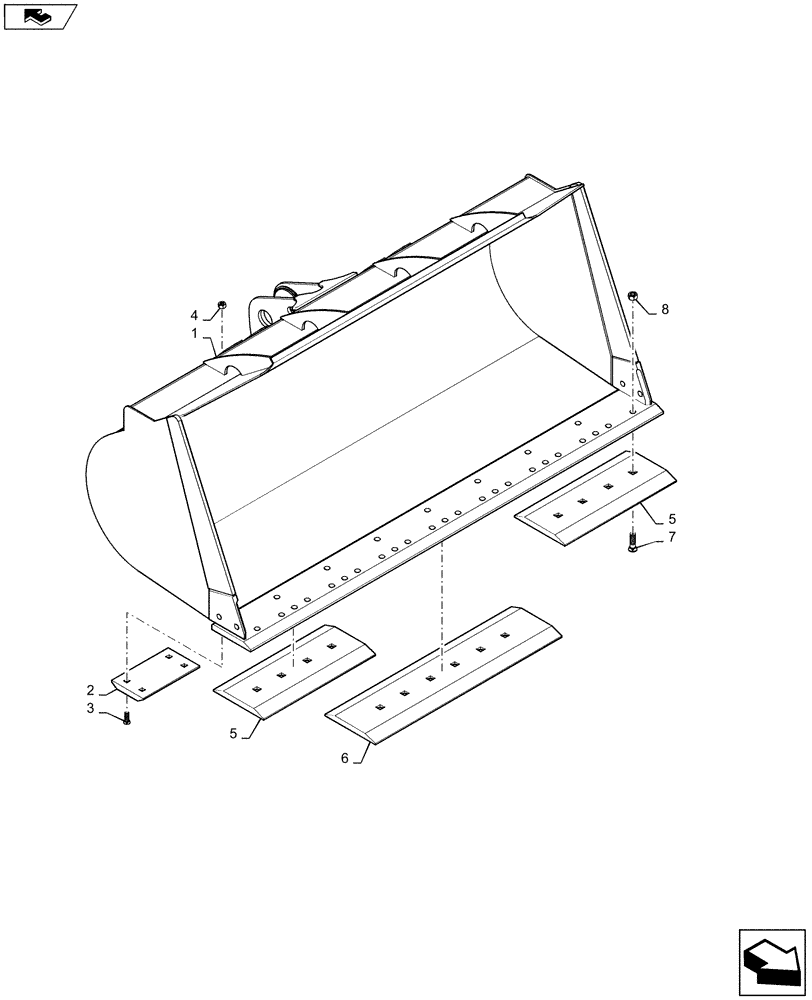

Запчасти Case 721F (82.100.01) - LOADER BUCKET - WITH BOLT ON EDGE AND SKID PADS (82) - FRONT LOADER & BUCKET

1

84294123

BUCKET

1шт.

2

8500180

SKID PLATE

Bottom, Bolt On

2шт.

3

420-21236

CARRIAGE BOLT,#3, 3/4" - 10 x 2 1/4", Gr 8

8шт.

4

425-1612

NUT,3/4"-10, G5, Hvy

8шт.

5

8500178

CUTTING EDGE

Outer, Bolt On

2шт.

6

8500177

CUTTING EDGE,Bolt On, Double Edged, 6 Hole, 330.2mm W x 1219.5mm L

Center, Bolt On

1шт.

7

L125966

PLOW BOLT,#3, Dome Hd, 1" - 8 x 3.50", Gr 8

Dome Hd Plow No.3

14шт.

8

329-1016

NUT,1"-8, G8

14шт.
