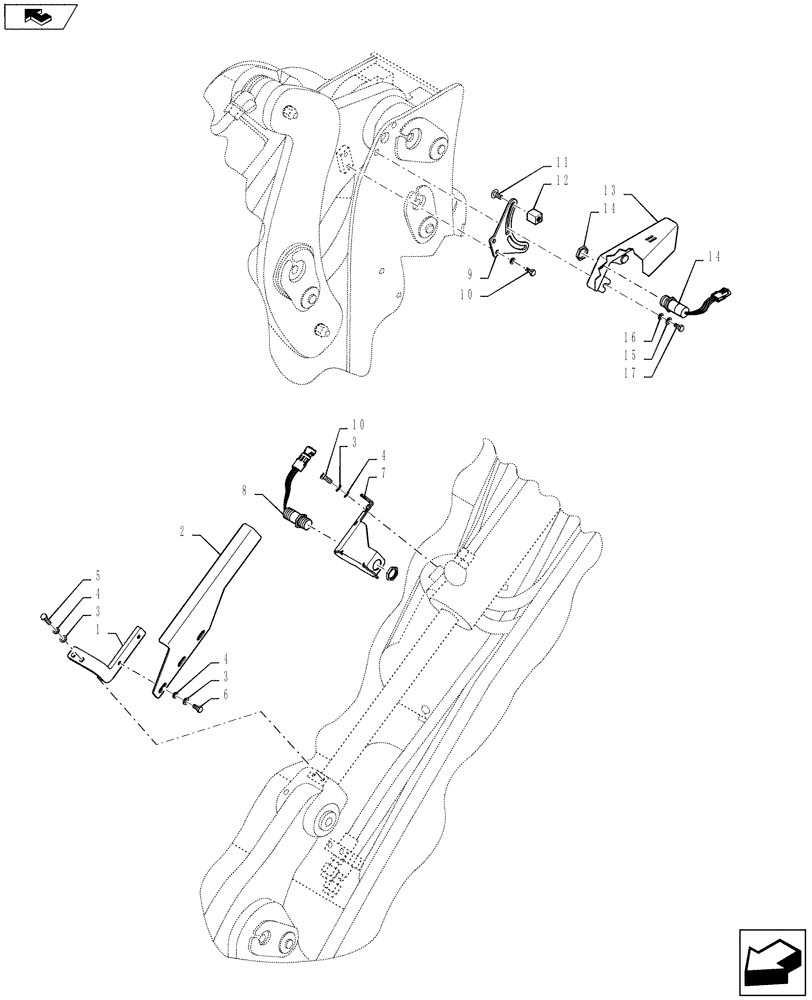

Запчасти Case 721F (55.746.02) - CONTROL - RETURN-TO-DIG AND BUCKET HEIGHT RETURN-TO-TRANSPORT (XT LOADER) (55) - ELECTRICAL SYSTEMS

1

87304560

BRACKET

Rod End Rtd

1шт.

2

87324778

BRACKET

Target Rtd

1шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

4

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

6шт.

5

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

6

11106031

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9

2шт.

7

87310689

BRACKET

Proximity Switch

1шт.

8

1546497C1

SWITCH

Proximity Switch

1шт.

9

76082607

PLATE

Proximity Switch

1шт.

10

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

4шт.

11

374895

CARRIAGE BOLT,M12 x 1.75 x 25mm, Cl 8.8

2шт.

12

87437102

BLOCK

2шт.

13

87430084

COVER

1шт.

14

1546498C1

SWITCH

1шт.

15

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

2шт.

16

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

2шт.

17

626-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.
