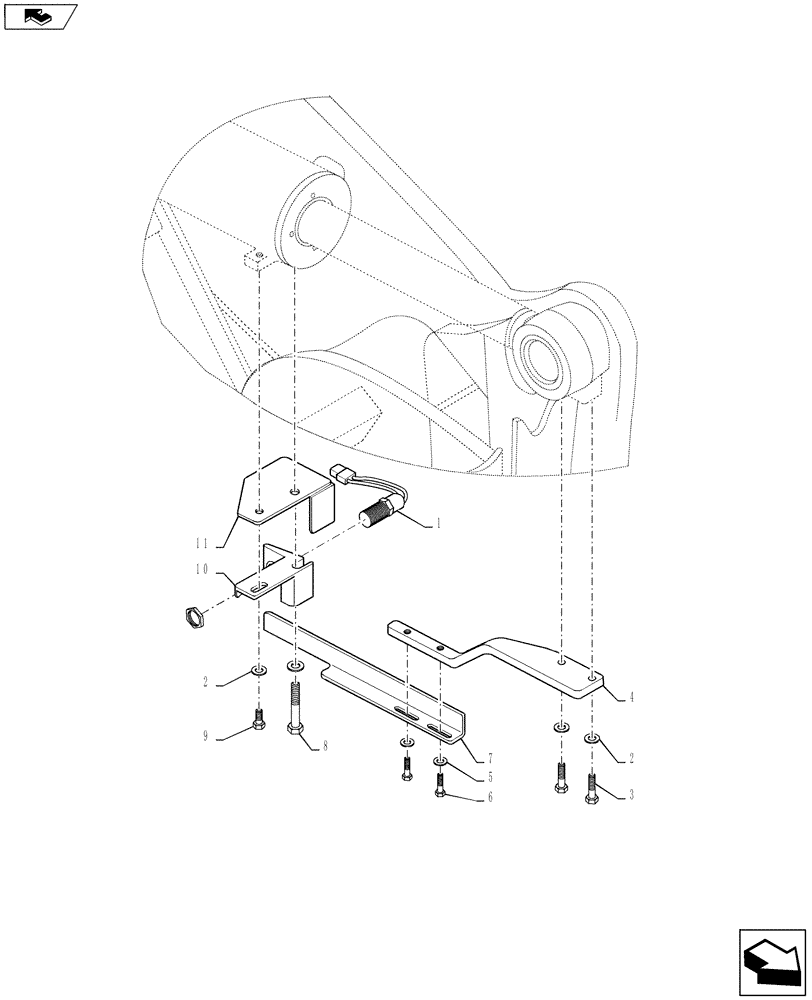

Запчасти Case 721F (55.746.01[01]) - CONTROL - RETURN-TO-DIG (Z BAR) (55) - ELECTRICAL SYSTEMS

1

1546497C1

SWITCH

Proximity

1шт.

2

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

4шт.

3

626-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

4

87403964

BRACKET

Return To Dig

1шт.

5

86625252

WASHER,10.8mm ID x 21.5mm OD x 2.5mm Thk

2шт.

6

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

2шт.

7

443541A1

BRACKET

Target RTD

1шт.

8

412605

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

1шт.

9

398792

SCREW,Hex, M12 x 25mm, Cl 10.9

1шт.

10

L125983

SUPPORT

Proximity Switch

1шт.

11

87403966

COVER

Proximity Switch

1шт.
