(55.404.07) - CAB/CANOPY - WORK LIGHTS FRONT AND REAR

Запчасти Case 721F (55.404.07) - CAB/CANOPY - WORK LIGHTS FRONT AND REAR (55) - ELECTRICAL SYSTEMS

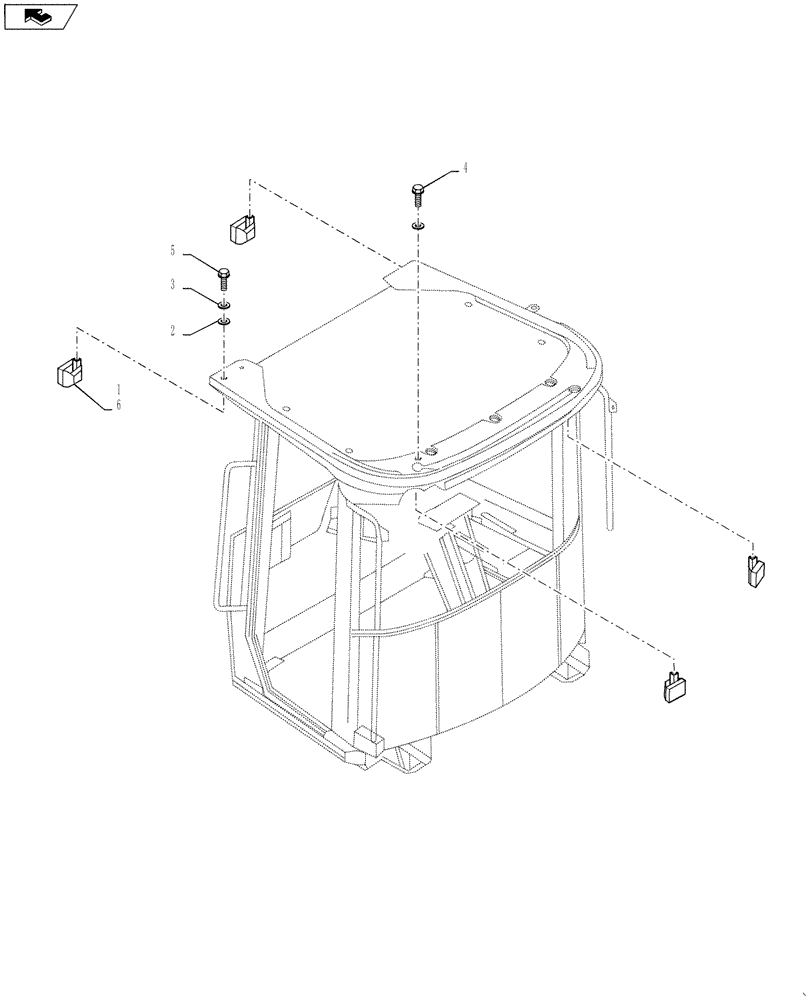

Схема запчастей Case 721F - (55.404.07) - CAB/CANOPY - WORK LIGHTS FRONT AND REAR (55) - ELECTRICAL SYSTEMS
1
6
4
5
home
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87555142

LIGHT ASSY.,Halogen, 24V, 65W, Clear

Flood 24v 65w H3 HD

4шт.

1

47682624

WORK LAMP

LAMP, WORK, LED

4шт.

2

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

3

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

2шт.

4

87547661

BOLT,Hex, M10 x 16mm, Cl 10.9, Full Thd

2шт.

5

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

6

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

For Flood Light; H3 24V 65W HD

2шт.

7

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.
