(55.404.03) - REAR LIGHT INSTALLATION - N/A

Запчасти Case 721F (55.404.03) - REAR LIGHT INSTALLATION - N/A (55) - ELECTRICAL SYSTEMS

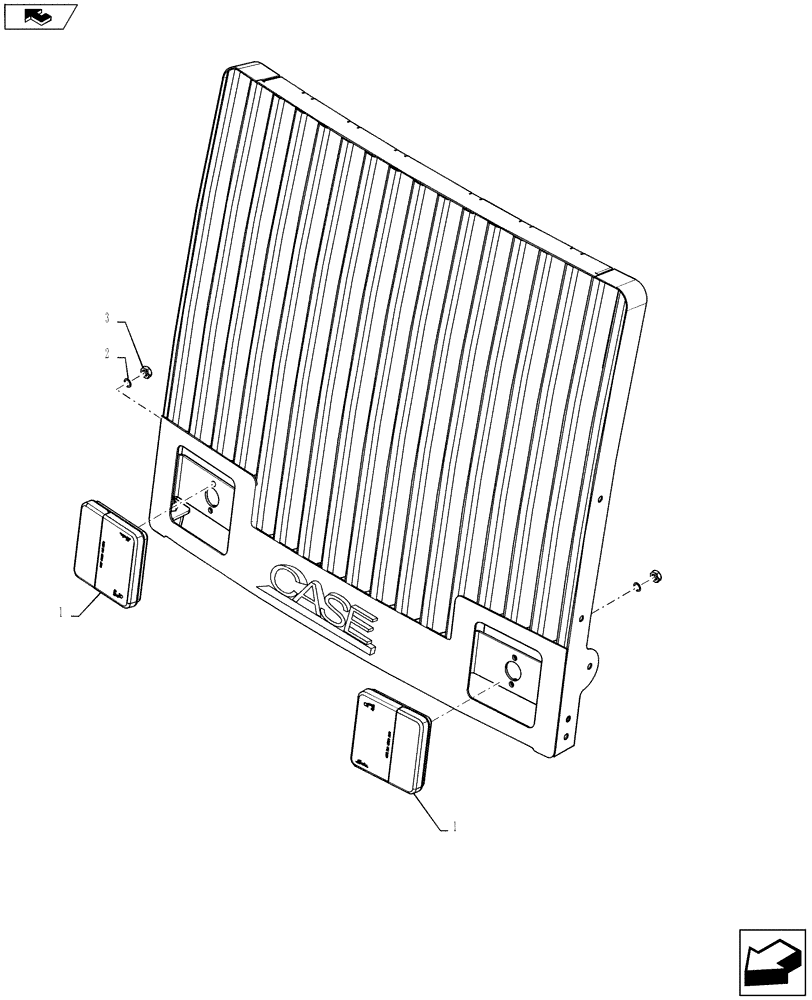

Схема запчастей Case 721F - (55.404.03) - REAR LIGHT INSTALLATION - N/A (55) - ELECTRICAL SYSTEMS
3
home
2
1
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87578654

TAIL LAMP

Sealed LCD; Component Parts Not Serviced Separately

2шт.

2

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

4шт.

3

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

4шт.
