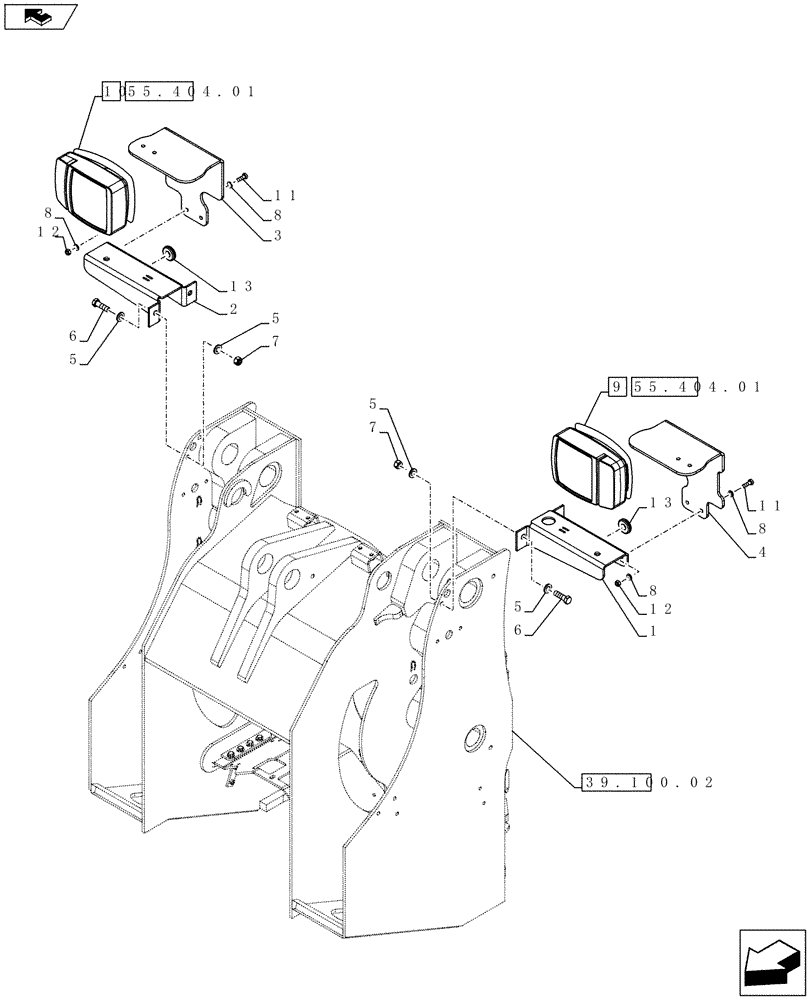

Запчасти Case 721F (55.404.02) - FRONT LIGHT INSTALLATION (55) - ELECTRICAL SYSTEMS

1

87749484

BRACKET

Left Hand Front Light, (87534020 EU)

1шт.

2

87749489

BRACKET

Right Hand Front Light (87534017 EU)

1шт.

3

87384993

SHIELD

Light

1шт.

4

87351718

SHIELD

Light

1шт.

5

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

8шт.

6

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

4шт.

7

829-1412

NUT,M12, Cl 10.9

4шт.

8

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

9

368056A1

LIGHT,Halogen, 24V, 70W, Clear

See Fig. 55.404.01

1шт.

10

368055A1

LIGHT,Halogen, 24V, 70W, Clear

See Fig. 55.404.01

1шт.

11

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

12

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

13

248-2376

GROMMET,5/8" ID x 1 1/4" Groove Dia, Str Cut

2шт.
