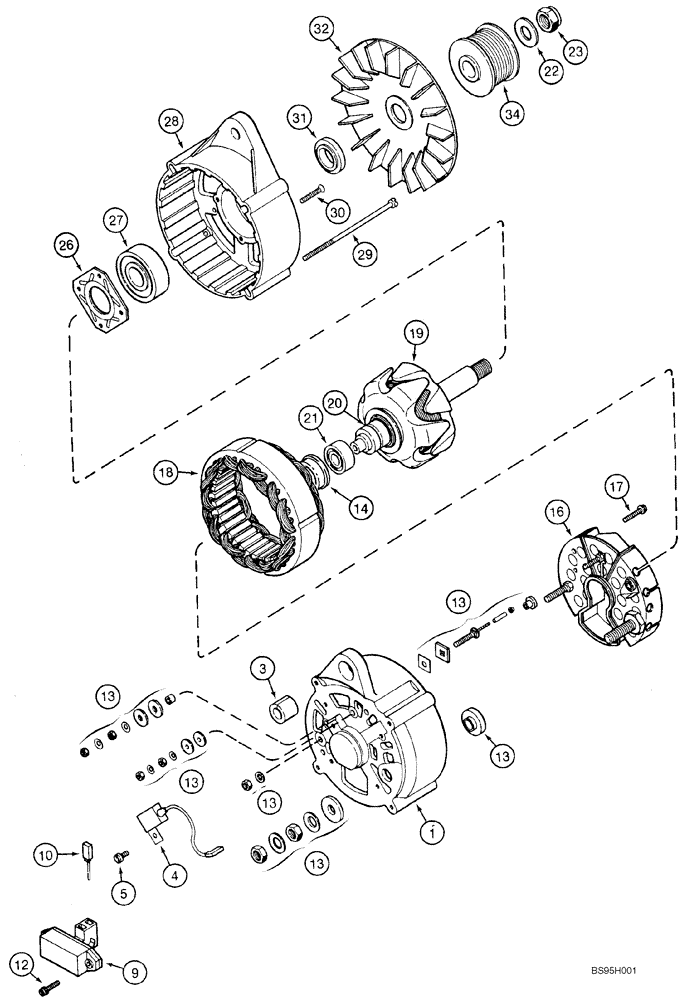

Запчасти Case 721F (55.301.06) - ALTERNATOR ASSY (55) - ELECTRICAL SYSTEMS

1964860C1

ALTERNATOR,24V, 60A, W/O Pulley

24V, 65 amp; Incl. 1 - 32

1шт.

1964860C1GV

ALTERNATOR

Value

1шт.

1964860C1R

REMAN-ALTERNATOR

721F WHEEL LOADER - TIER 4 / TIER 2 (NA), 24V, 65 amp, ALTERNATOR ASSY

1шт.

1964860C1C

CORE-ALTERNATOR

Return Number

1шт.

1

1964731C1

HOUSING

1шт.

3

1964737C1

BUSHING,13.5mm ID x 20mm OD x 20mm L

1шт.

4

3079389R1

CAPACITOR

1шт.

5

1964969C1

SCREW

1шт.

9

3079392R91

GOVERNOR

Voltage; Incl. 10

1шт.

10

1964968C1

COMMUTATOR BRUSH

1шт.

12

A186194

SCREW,M4 x 18mm

2шт.

13

1964738C1

REPAIR KIT

Hardware

1шт.

14

1546477C1

SLEEVE

1шт.

16

1964965C1

RECTIFIER

1шт.

17

A187504

SCREW

2шт.

18

1964966C1

STATOR

1шт.

19

1964964C1

ROTOR

1шт.

20

3079410R1

RING

1шт.

21

1964730C1

BALL BEARING,12mm ID x 32mm OD x 14mm W

1шт.

22

495-21063

WASHER,9/16"

1шт.

23

231-46110

LOCK NUT,5/8"-18, GB

1шт.

26

1964727C1

PLATE

1шт.

27

1964726C1

BALL BEARING,22.2mm ID x 56mm OD x 21mm W

Drive End

1шт.

28

1964725C1

HOUSING

1шт.

29

1964748C1

SCREW

M5 x 132

4шт.

30

1964750C1

SCREW

M4 x 30

4шт.

31

1964729C1

SPACER

1шт.

32

1964736C1

FAN

1шт.

34

J918275

PULLEY,66mm OD

1шт.
