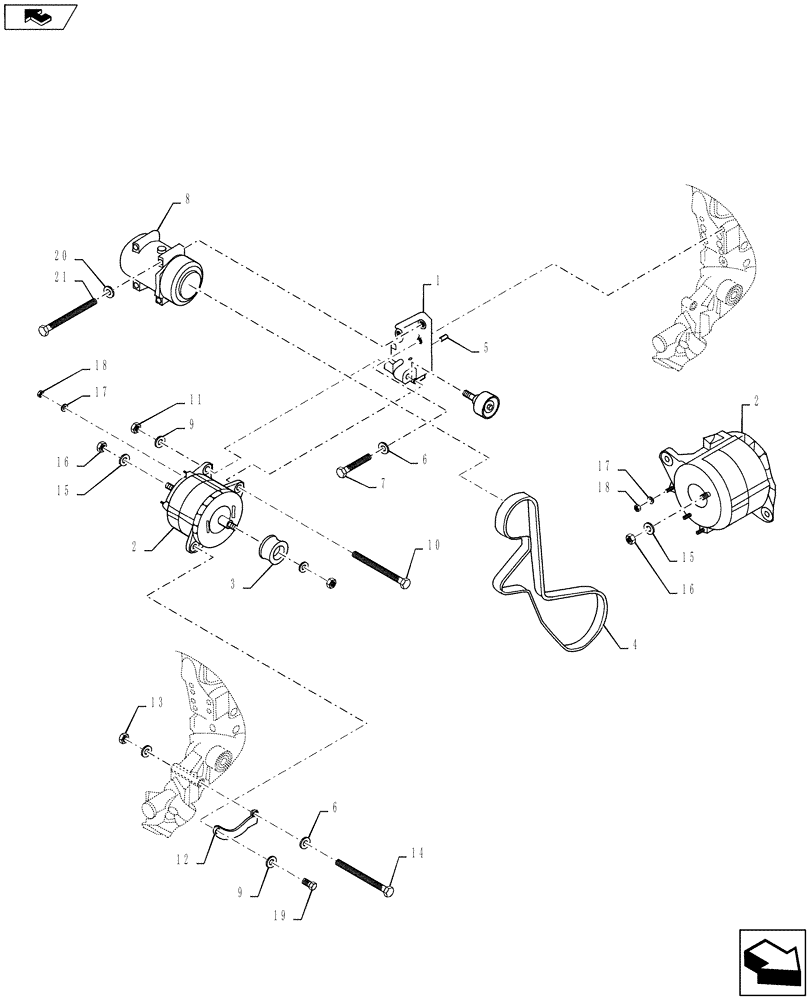

Запчасти Case 721F (55.301.05) - ALTERNATOR - MOUNTING WITH AIR CONDITIONING (55) - ELECTRICAL SYSTEMS

1

87547181

BRACKET

65A Alternator

1шт.

2

1964860C1

ALTERNATOR,24V, 60A, W/O Pulley

280V, 65A

1шт.

2

1964860C1GV

ALTERNATOR

Value

1шт.

2

1964860C1R

REMAN-ALTERNATOR

W130C WHEEL LOADER - TIER 2 (INT), 24V, 65 amp, MOUNTING W/ CONDITIONING (1/12-), 621F WASTE HANDLING - TIER 4A, 280V, 65A (7/13-), 721F WHEEL LOADER, WASTE HANDLING - TIER 4A (NA), 280V, 65A (7/13-), 721F WHEEL LOADER - TIER 4 / TIER 2

1шт.

2

1964860C1C

CORE-ALTERNATOR

Return Number

1шт.

3

86976071

PULLEY,66mm OD

Alternator

1шт.

4

87397416

BELT,95.49 mm W x 1725.00 mm L

Alternator with Air Conditioning

1шт.

5

837-6035

DOWEL,M6 x 35

2шт.

6

86625252

WASHER,10.8mm ID x 21.5mm OD x 2.5mm Thk

5шт.

7

86508618

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

3шт.

8

8500795

AIRCOND. COMPRESSOR,W/ Pulley

24V Small Body

1шт.

8

8500795R

REMAN-COMPRESSOR,W/ Pulley

721F TIER 4

1шт.

8

8500795C

CORE-COMPRESSOR

Return Number

1шт.

9

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

2шт.

10

426-8104

BOLT,Hex, 1/2" - 13 x 6-1/2", Gr 8

1шт.

11

87333862

NUT

1/2-13 GR.B ZND

1шт.

12

8501098

BRACE

Plate, Alternator

1шт.

13

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

14

827-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 10.9

1шт.

15

81547

LOCK WASHER,7/16"

1шт.

16

280717

NUT,7/16"-14, G5

1шт.

17

322355

BELLEVILLE WASHER,M4 Bolt Size x 10mm OD x 0.9mm Thk

1шт.

18

57121

NUT,M4, Cl 8

1шт.

19

280853

BOLT,1/2"-13 x 1.563" OAL, Cl 8, Full Thd

1шт.

20

86624185

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

1шт.

21

86512165

BOLT,Hex, M8 x 100mm, Cl 10.9

3шт.
