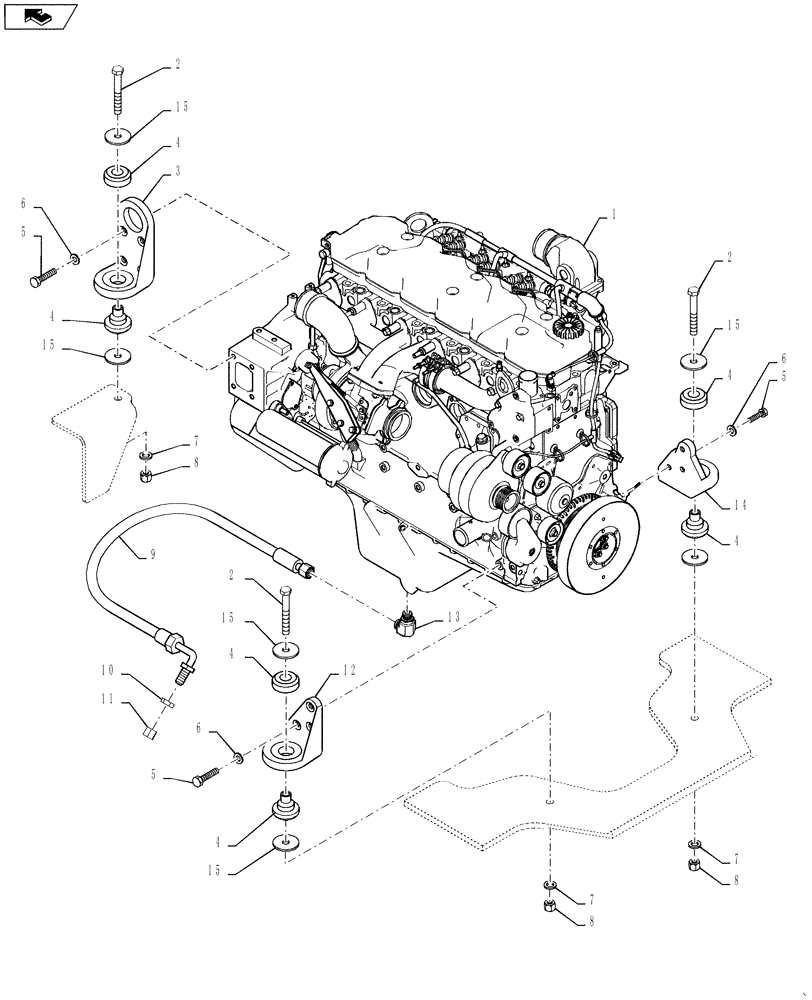

Запчасти Case 721F (10.001.05) - ENGINE INSTALLATION (10) - ENGINE

1

84387923

ENGINE

6 Cylinder, 4V 121/145 KW

1шт.

84387923ER

REMAN-REPLACEMENT EN

621F 4Valve, 6 Cyl., Tier 4

1шт.

84387923EPAC

CORE-EPA ENGINE

Return Number

1шт.

84387923R

EXCHANGE ENGINE

621F TIER 4 (1/12 - )

1шт.

84387923C

CORE-ENGINE

Return Number

1шт.

2

827-16120

BOLT,Hex, M16 x 2 x 120mm, Cl 10.9

4шт.

3

8602302

ENGINE MOUNT

Flywheel Housing

2шт.

4

361811A1

ISOLATOR

4шт.

5

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

14шт.

6

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

14шт.

7

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

8

832-10416

NUT,M16 x 2, Cl 8

4шт.

9

397437A1

FLEXIBLE HOSE

Oil Pan Drain

1шт.

10

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

1шт.

11

218-756

CAP,37 Degree, 7/8"-14

1шт.

12

8602304

ENGINE MOUNT

Rear Left

1шт.

13

87426452

FITTING

1шт.

14

8602303

ENGINE MOUNT

Rear Right

1шт.

15

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

12шт.
