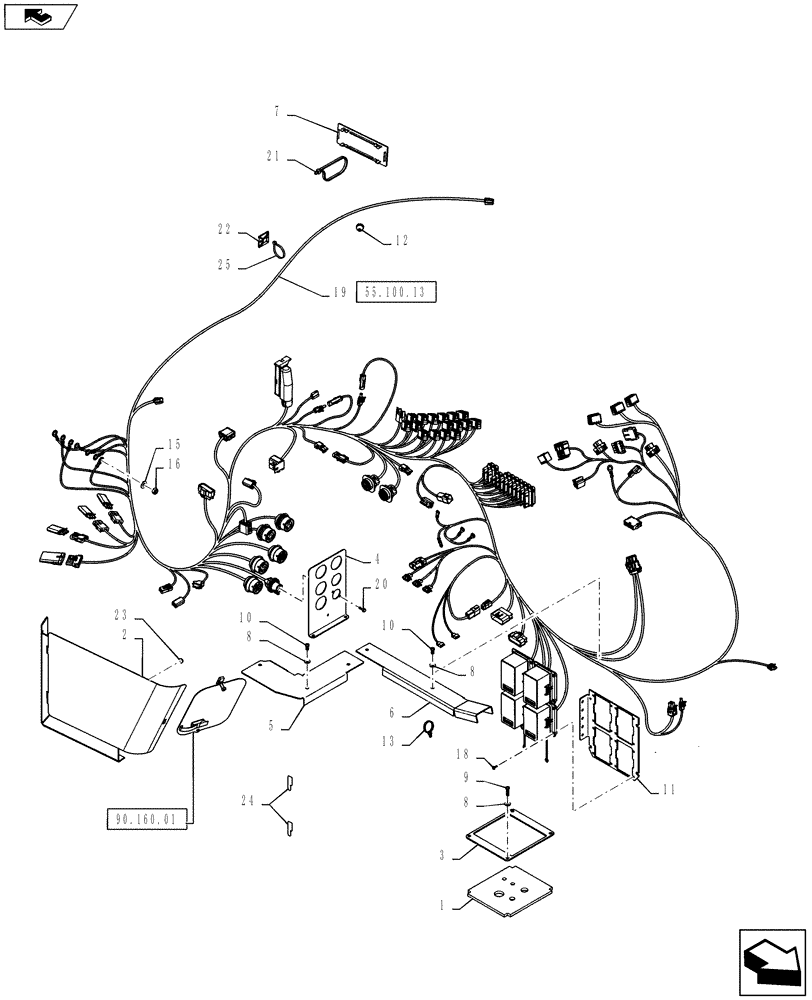

Запчасти Case 721F (55.100.14[01]) - HARNESS INSTALLATION, MAIN CANOPY COMPONENTS (55) - ELECTRICAL SYSTEMS

1

84376391

GASKET

Harness

1шт.

2

87721000

DOOR

Electrical Access

1шт.

3

76303258

PLATE

Cab Harness Seal

1шт.

4

84377340

BRACKET

Connectors

1шт.

5

76303498

BRACKET

1шт.

6

84308110

COVER

Cable Central

1шт.

7

76303606

COVER

Radio

1шт.

8

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

11шт.

9

840-1625

SCREW,Pan, M6 x 25mm, Cl 4.8

4шт.

10

840-1616

SCREW,Pan, M6 x 16mm, Cl 4.8

7шт.

11

87341862

PLATE

Electrical Center

1шт.

12

71485202

GROMMET,M5 x 21 x 16

1шт.

13

87668737

CABLE TIE,203.2mm L, Nylon, Black

Fir Tree Assembly

6шт.

15

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

Brass

1шт.

16

253347A1

NUT,Hex, M10 x 1.5

Brass

1шт.

18

840-1512

SCREW,Pan, M5 x 12mm, Gr 4.8

16шт.

19

84385606

WIRE HARNESS

Harness Install Cab with Fuses and Relays; See Fig. 55.100.13

1шт.

20

86509545

SELF-TAP SCREW,#10 - 24 x 3/4"

#10 x .75

2шт.

21

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.

22

22-823

MOUNT

Backed

3шт.

23

322197950

SPACER

Rubber DIA.11

6шт.

24

84185846

DECAL

Access Door

2шт.

25

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP Black 7-8" Nylon

3шт.
