Запчасти Case 721F (55.100.12[02]) - HARNESS, MAIN CAB (55) - ELECTRICAL SYSTEMS

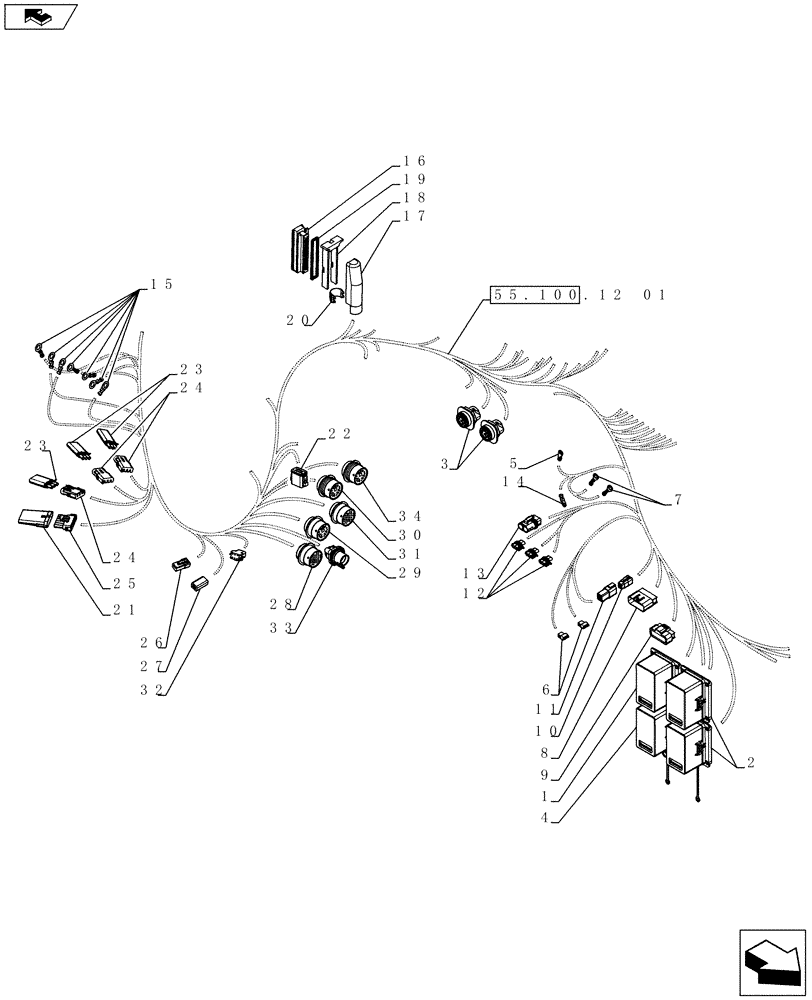

Схема запчастей Case 721F - (55.100.12[02]) - HARNESS, MAIN CAB (55) - ELECTRICAL SYSTEMS
6
33
10
27
32
26
15
18
19
29
2
28
30
22
13
24
12
23
home
20
8
25
31
55.100.12 01
1
16
5
34
9
17
7
21
14
24
23
4
11
3

Артикул

Название

Примечание

Количество

1

87315249

FUSE BOX

1шт.

2

87312843

FUSE BOX

2шт.

3

87736919

CONTACT HOUSING,Female, 9 Pole

9-Way Recepticle

2шт.

4

87315248

RELAY

20 Fuse Bussed

1шт.

5

1964721C1

TERMINAL CONNECTOR

Ring

1шт.

6

199436A1

CONNECTOR, ELEC

CONNECTOR ES-A7380

2шт.

7

1964722C1

TERMINAL CONNECTOR

Ring

2шт.

8

388708A1

CONNECTOR, ELEC

CONNECTOR

1шт.

9

388710A1

CONNECTOR, ELEC

CONNECTOR

1шт.

10

280451A1

CONNECTOR,ELECTRIC

6-Cavity Plug

1шт.

11

280453A1

ELEC CONNECTOR,Male, 6 Pin

6-Cavity Recepticle

1шт.

12

256340A1

CONNECTOR, ELEC

CONNECTOR Metri Pack 2

3шт.

13

409084A1

ELEC CONNECTOR,Female, 2 Pin

Power, Bussman

1шт.

14

1964710C1

TERMINAL CONNECTOR

Ring

1шт.

15

1964718C1

TERMINAL CONNECTOR

Ring

7шт.

16

NSS

NOT SOLD SEPARAT

CONNECTOR, 68- Cavity

1шт.

17

NSS

NOT SOLD SEPARAT

CAP, Amp

1шт.

18

NSS

NOT SOLD SEPARAT

CLIP, Locking

1шт.

19

NSS

NOT SOLD SEPARAT

SEAL, 68-Pin Connector

1шт.

20

NSS

NOT SOLD SEPARAT

LOCK, 68-Pin Connector

1шт.

21

A187813

DIODE

Module

1шт.

22

225389C1

CONNECTOR, ELEC

CONNECTOR 12-Cavity

1шт.

23

A187874

MODULE

Module

2шт.

24

245485C1

ELEC CONNECTOR,Male, 3 Pin

3-Cavity Recepticle

2шт.

25

245488C1

ELEC CONNECTOR,6 Pin

6-Cavity Plug

1шт.

26

NSS

NOT SOLD SEPARAT

PLUG

1шт.

27

239451A1

MULTIPOLE CONNECTOR,Female, 4 Pin

4-Cavity Plug

1шт.

28

291661A1

CONNECTOR, ELEC

CONNECTOR 31-Cavity Recepticle

1шт.

29

319184A1

CONNECTOR, ELEC

CONNECTOR 18-Cavity Recepticle

1шт.

30

NSS

NOT SOLD SEPARAT

CONNECTOR

1шт.

31

380839A1

ELEC CONNECTOR,Female, 31 Pin

31-Cavity Recepticle

1шт.

32

291663A1

CONNECTOR, ELEC

CONNECTOR 6-Pin Plug

1шт.

33

NSS

NOT SOLD SEPARAT

CONNECTOR, Battery Positive

1шт.

34

NSS

NOT SOLD SEPARAT

CONNECTOR, 21-Way Recepticle

1шт.

Выбрано товаров: 34
