Запчасти Case 721F (55.100.12[01]) - HARNESS, MAIN CAB (55) - ELECTRICAL SYSTEMS

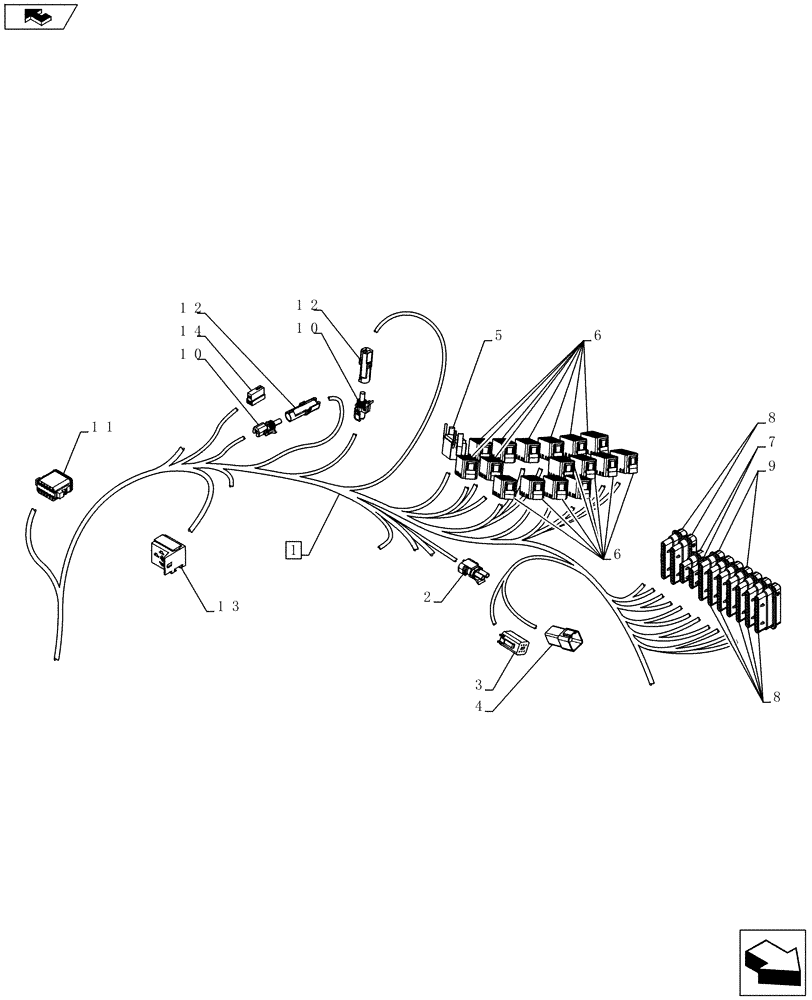

Схема запчастей Case 721F - (55.100.12[01]) - HARNESS, MAIN CAB (55) - ELECTRICAL SYSTEMS
home
7
12
2
13
12
1
6
3
5
10
8
14
8
6
11
4
10
9

Артикул

Название

Примечание

Количество

1

84385607

WIRE HARNESS

HARNESS, Main Cab, Inc. Fig 55.100.12(02) and 55.100.12(03)

1шт.

2

245482C1

ELEC CONNECTOR,2 Pin

2-Cavity Plug

1шт.

3

225351C1

ELEC CONNECTOR,Female, 6 Pin

6-Cavity Plug

1шт.

4

225350C1

ELEC CONNECTOR,Male, 6 Pin

2-Cavity Recepticle

1шт.

5

NSS

NOT SOLD SEPARAT

CONNECTOR, L-Series 4.7mm

1шт.

6

382391A1

MULTIPOLE CONNECTOR,Female, 10 Pin

CONNECTOR, Carling 10-Cavity Plug

14шт.

7

NSS

NOT SOLD SEPARAT

SPLICE,6-Way Delphi

2шт.

8

NSS

NOT SOLD SEPARAT

SPLICE, 12-Way

7шт.

9

NSS

NOT SOLD SEPARAT

SPLICE, 3x4-Way

2шт.

10

245480C1

ELEC CONNECTOR,1 Pin

1-Cavity Plug

2шт.

11

225389C1

CONNECTOR, ELEC

CONNECTOR 12-Cavity

1шт.

12

245481C1

CONNECTION,ELECTRIC

1-Cavity Recepticle

2шт.

13

245731C1

CONNECTOR, ELEC

CONNECTOR 5-Cavity Minirelay Plug

1шт.

14

3227856R1

CONNECTION

2-Cavity Recepticle

1шт.

Выбрано товаров: 14
