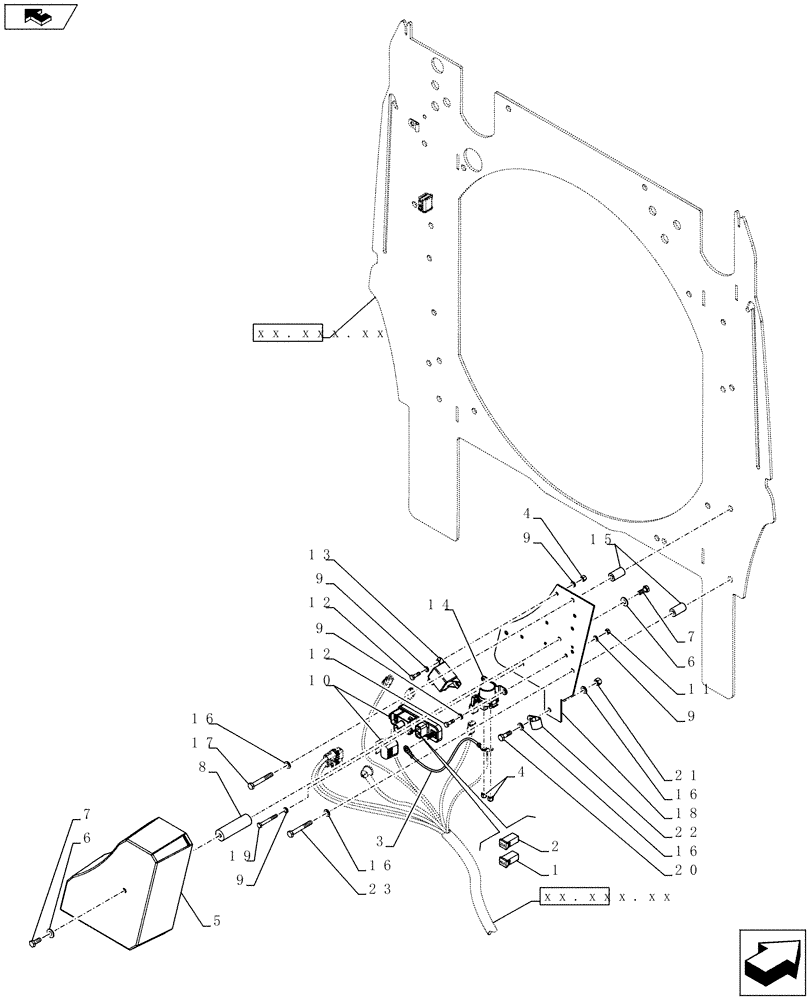

Запчасти Case 721F (55.100.10) - HARNESS, REAR RELAY PANEL (55) - ELECTRICAL SYSTEMS

1

87327346

FUSE,40A, Green

32 Volt 40A

1шт.

2

87327335

FUSE,20 Amp

32 Volt 20A

1шт.

3

87350066

CABLE

Starter Relay

1шт.

4

832-10406

NUT,M6 x 1, Cl 8

5шт.

5

87353999

COVER

For Relays

1шт.

6

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

7

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

8

404635A1

SPACER

Round

1шт.

9

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6шт.

10

87318627

MODULE

Power Relay Connector

1шт.

11

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

12

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

4шт.

13

1546485C1

RELAY,24V

Power

1шт.

14

87351908

SOLENOID SWITCH

Starting Relay

1шт.

15

82024562

SPACER,8.5mm ID x 18mm OD x 31.6mm L

Intercooler Tube

3шт.

16

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

17

827-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 10.9

1шт.

18

84291255

ELEC SUPPORT PLATE

1шт.

19

827-6050

BOLT,Hex, M6 x 50mm, Cl 10.9

1шт.

20

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

21

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

22

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

1шт.
