Запчасти Case 721F (55.100.04) - HARNESS, TRANSMISSION (55) - ELECTRICAL SYSTEMS

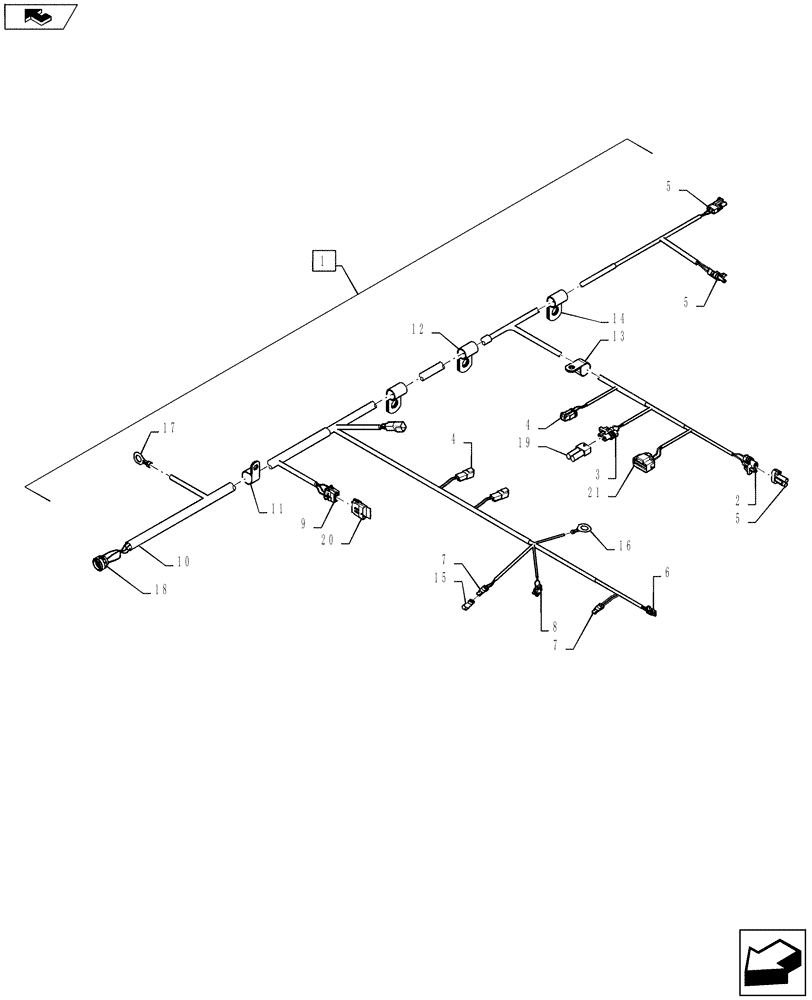

Схема запчастей Case 721F - (55.100.04) - HARNESS, TRANSMISSION (55) - ELECTRICAL SYSTEMS
home
21
17
10
8
3
5
4
14
12
1
7
6
9
15
5
19
11
13
20
5
2
16
18
4
7

Артикул

Название

Примечание

Количество

1

84292030

HARNESS

Transmission

1шт.

2

245482C1

ELEC CONNECTOR,2 Pin

2 Cavity Plug

1шт.

3

225316C1

ELEC CONNECTOR,Female, 2 Pin

2 Cavity Plug

1шт.

4

291718A1

ELEC CONNECTOR,Female, 2 Pin

2 Pin Plug

4шт.

5

245483C1

ELEC CONNECTOR,Male, 2 Pin

2 Cavity Recepticle

3шт.

6

291719A1

CONNECTOR, ELEC

CONNECTOR 3 Cavity Plug

1шт.

7

371614A1

ELEC CONNECTOR,Female, 2 Pin

2 Cavity Plug

2шт.

8

194788A1

CONNECTOR, 2-POLE

2 Cavity Plug

1шт.

9

245488C1

ELEC CONNECTOR,6 Pin

6 Cavity Plug

1шт.

10

NSS

NOT SOLD SEPARAT

Butt Splice

3шт.

11

515-23238

CLAMP,15/16", Insul, 3/8" Bolt

1шт.

12

515-24190

CLAMP,3/4", Insul, 7/16" Bolt

2шт.

13

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

1шт.

14

515-23111

CLAMP,7/16", Insul, 3/8" Bolt

1шт.

15

371615A1

CONNECTION,ELECTRIC

2 Cavity Recepticle

1шт.

16

1964703C1

TERMINAL CONNECTOR

Ring

1шт.

17

1964718C1

TERMINAL CONNECTOR

Ring

1шт.

18

380838A1

ELEC CONNECTOR,Male, 31 Pin

31 Pin Plug

1шт.

19

225315C1

ELEC CONNECTOR,Male, 2 Pin

2 Cavity Recepticle

1шт.

20

245489C1

ELEC CONNECTOR,Male, 6 Pin

6 Cavity Recepticle

1шт.

21

371566A1

CONNECTOR,ELECTRIC

16 Cavity Plug

1шт.

Выбрано товаров: 21
