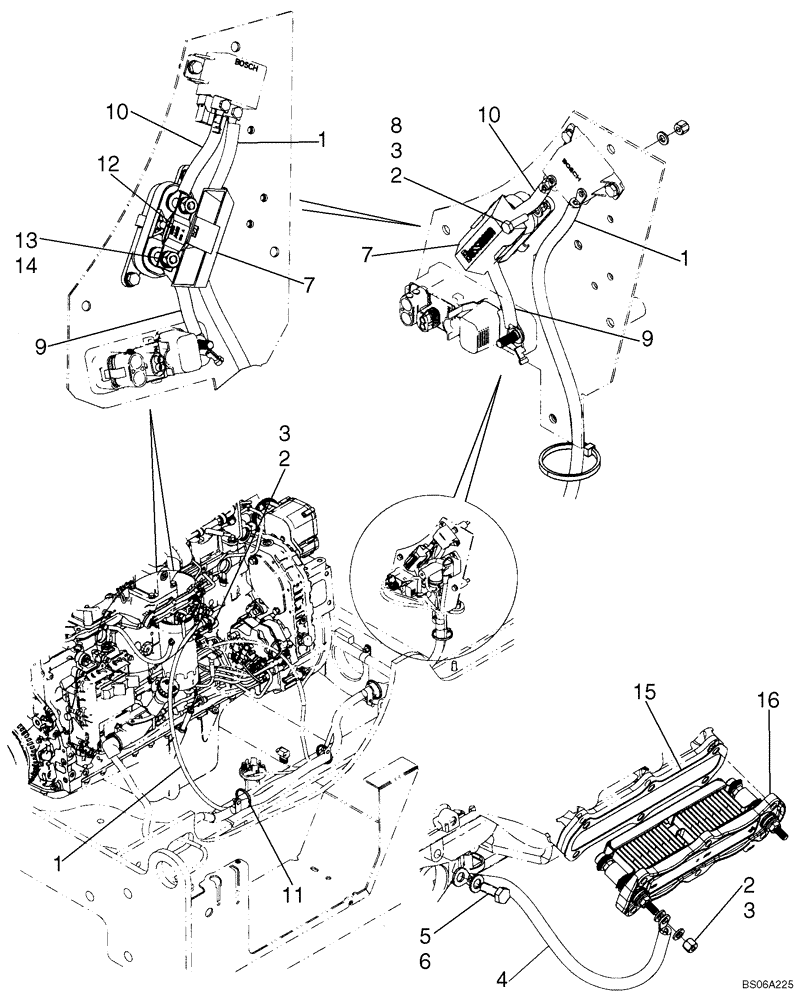

Запчасти Case 721F (55.100.02) - HARNESS - ENGINE - GRID HEATER (55) - ELECTRICAL SYSTEMS

REF

INSTRUCTION

WITH GRID HEATER

1шт.

1

87354000

CABLE,2135mm L

Grid Heater; Power

1шт.

2

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.

3

832-10406

NUT,M6 x 1, Cl 8

4шт.

4

87398558

CABLE

Grid Heater; Ground

1шт.

5

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

6

43233

BOLT,Hex, M8 x 1.25 x 20mm, Full Thd, Cl 10.9

1шт.

7

87302554

ELEC CONNECTOR,6 Fuses

Block Fuse

1шт.

8

86505530

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

1шт.

9

87350062

CABLE

Grid Heater; B+

1шт.

10

87348713

CABLE

Grid Heater

1шт.

11

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

4шт.

12

8501311

FUSE,150A, Megaval

150 Amp

1шт.

13

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

2шт.

14

43362

NUT,M8 x 1.25, Cl 10

2шт.

15

2854701

GASKET,0.8mm Thk

Air Intake

1шт.

16

2855345

HEATER

Iveco 24v

1шт.
