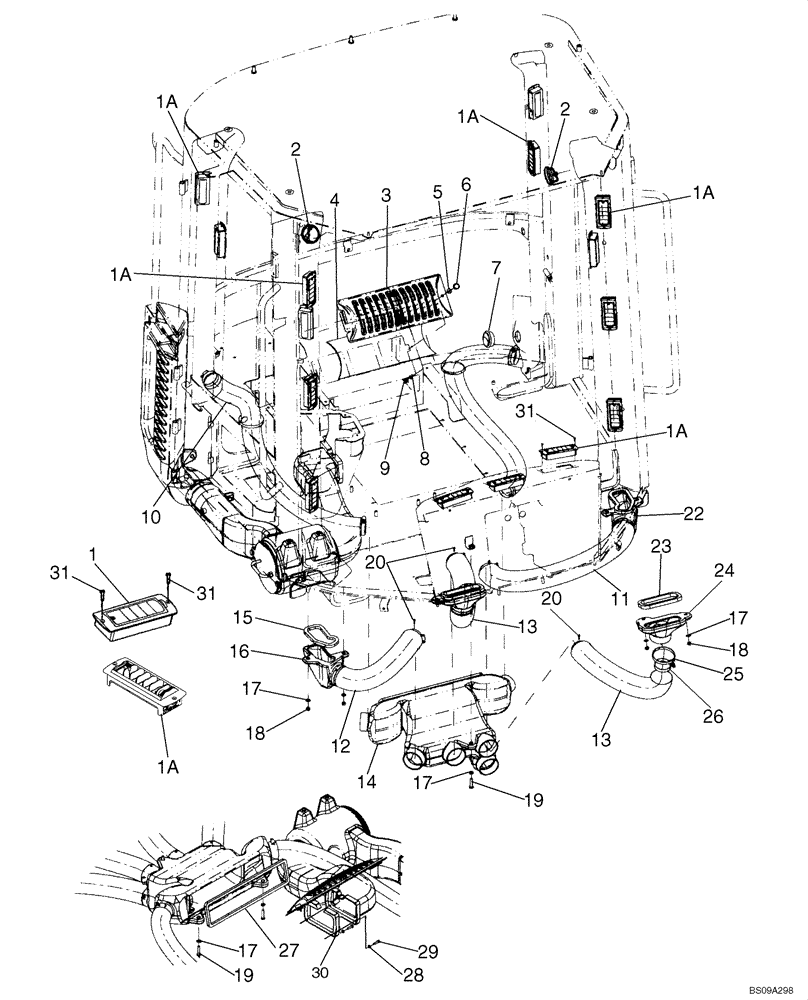

Запчасти Case 721F (50.206.01[02]) - CAB - HEATER AND AIR CONDITIONING DUCTS (50) - CAB CLIMATE CONTROL

1

84159954

OUTLET

15шт.

2

76048980

VENT

Discharge Spout

2шт.

3

84125367

COVER

Recirculate Air

1шт.

4

84389987

AIR FILTER,Square, 415mm L x 164mm W, Paper

Cab Recirculation

1шт.

5

87610804

RUBBER WASHER

D6.4 x 17

1шт.

6

76303321

PIN

1/4 Turn

1шт.

7

76303265

LOUVER

1шт.

8

76303319

WASHER

1/4 Turn

1шт.

9

76303320

CLIP

1/4 Turn

1шт.

10

76303505

HOSE,70mm ID x 1700mm L

1шт.

11

76303501

HOSE,80mm ID x 865mm L

865mm ID 80mm

1шт.

12

76303502

VENTILATION PIPE

Cut From Bulk P/N 87525059

1шт.

13

76303549

VENTILATION PIPE

Cut From Bulk P/N 87525059

2шт.

14

76303023

DUCT

1шт.

15

76303495

GASKET,10mm Thk

2шт.

16

87619957

AIR DUCT

RH

1шт.

17

87664049

WASHER,9mm ID x 16mm OD x 1.6mm Thk

M9 x 16 x 1.6

14шт.

18

86528579

NUT,M8 x 1.25

8шт.

19

15213321

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

3шт.

20

71485315

SCREW

4шт.

21

87619956

AIR DUCT

RH Center

1шт.

22

87619954

AIR DUCT

LH

1шт.

23

76303494

GASKET,13mm Thk

2шт.

24

87619955

AIR DUCT

LH Center

1шт.

25

87610848

GASKET

Cut From Bulk P/N 87665521

4шт.

26

87040758

HOSE CLAMP,71.4mm - 95.2mm

8шт.

27

76303496

GASKET,10mm Thk

1шт.

28

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

10шт.

29

120100

BOLT,M6 x 20mm, Cl 8.8

6шт.

30

76303547

GASKET,15mm Thk

Air Filter Housing

1шт.

31

265-17316

SELF-TAP SCREW,Phillips Drive, Oval HD, #6 - 20 x 1"

30шт.
