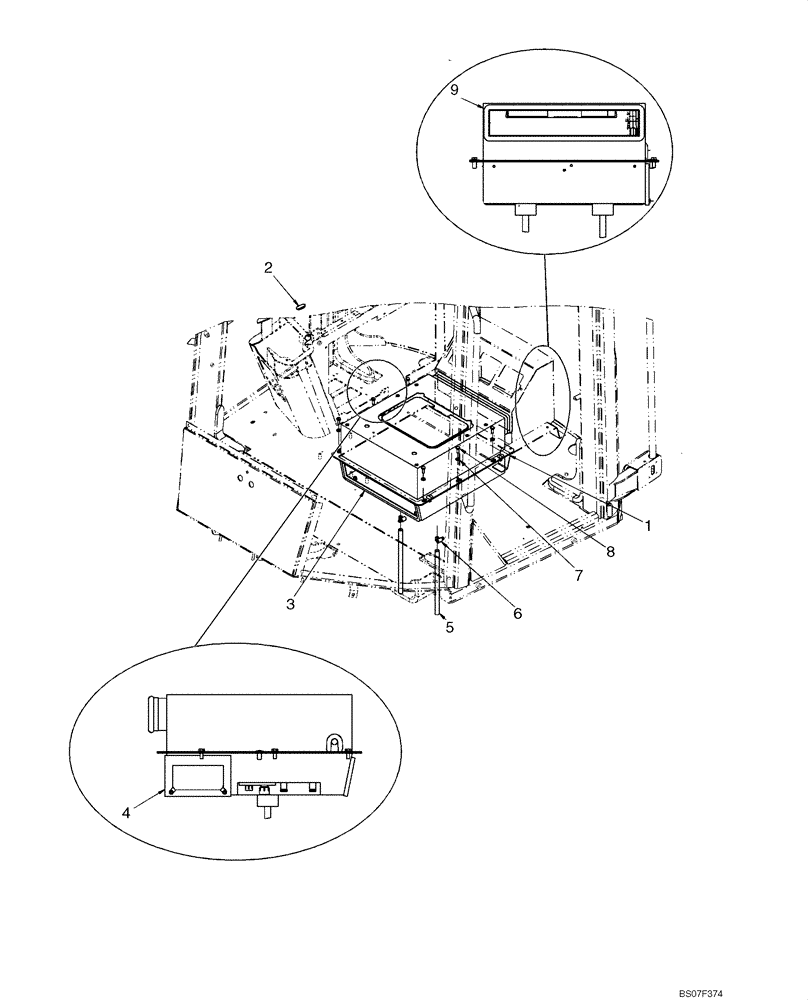

Запчасти Case 721F (50.200.03) - AIR CONDITIONING - MOUNTING (50) - CAB CLIMATE CONTROL

84192329

AIR CONDITIONER

HVAC Unit; Production Number Only, Order Component Parts; See Figure 50.200.04

1шт.

1

353-411

PLUG,Dome, 1.000" hole, Nylon

1шт.

2

76303496

GASKET,10mm Thk

Front Air Manifold

1шт.

3

76303497

GASKET

Air Intake

1шт.

4

87587637

PLASTIC-RUBBER TUBE

1/2" ID Clear PVC

2шт.

5

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

2шт.

6

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

7

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

6шт.

8

87651073

SEAL

1шт.
